MB88346PF-G-BND-EF

R-2R, type 8-bit D/A converter, operational amplifier, output buffer, sop

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.20

PartNumber:: MB88346PF-G-BND-EF

Brand:: Fujitsu Media Devices Limited - FMDL | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-12

From Other Seller

Part Number:MB88346PF-G-BND-EF
US $0.50 - 1.20
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

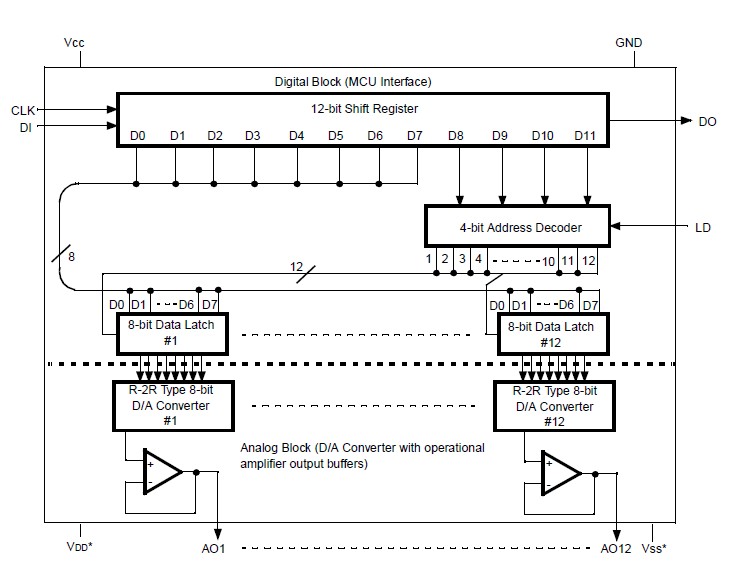

The Fujitsu MB88346PF-G-BND-EF is an R-2R type 8-bit resolution digital-to-analog converter (DAC), designed for interface with a wide range of general 4-bit and 8-bit microcontrollers including Fujitsu MB88200 family, MB8850 family, and MB88500 family 4-bit single-chip microcontrollers. The MB88346PF-G-BND-EF has an 8-bit x 12-channel D/A converter with operational amplifier output buffers. Digital data are input serially by individual channel units. The loaded digital data are converted into analog DC voltages by the D/A converter in 20 ms settling time. Also, the MB88346PF-G-BND-EF has operational amplifier output buffers. These operational amplifier output buffers are connected to each channel of the D/A converter, and provide high current drive capability. The MB88346PF-G-BND-EF is suitable for electronic volumes and replacement for potentiometers for adjustment, in addition to normal D/A converter applications.

Parametrics

MB88346PF-G-BND-EF absolute maximum ratings: (1)Input Voltage VIN: -0.3 to Vcc+0.3 V Ta = +25℃; (2)Output Voltage VOUT: -0.3 to Vcc+0.3 V GND = 0 V; (3)Power Dissipation PD: 250 mW; (4)Operating Ambient Temperature Ta: -20 - +85 ℃; (5)Storage Temperature TSTG: -55 to +150 ℃.

Features

MB88346PF-G-BND-EF features: (1)Conversion method : R-2R resistor ladder; (2)8-bit x 12-channel D/A converter with operational amplifier output buffers; (3)Max. 2.5MHz Serial data input; (4)Serial data output for cascade connection; (5)Max. 20 ms DAC output settling time; (6)Max. +1.0/-1.0 mA analog output sink/source current; (7)Two separate power supply/ground lines for MCU interface block/operational amplifier output buffer block and D/A converter block; (8)Pin compatible with MB88341; (9)Single +5V power supply; (10) Wide operating temperature range: -20℃ to +85℃; (11)Silicon-gate CMOS process.
