Product Summary
The TC74AC373F is an advanced high speed CMOS octal latch with 3-STATE OUTPUT fabricated with silicon gate and double-layer metal wiring C2MOS technology.
Parametrics
Absolute maximum ratings: (1)Supply voltage range:-0.5V to 7.0V ; (2)DC input voltage:-0.5V to VCC+0.5V ; (3)DC output voltage:-0.5V to VCC+0.5V ; (4)Input diode current:±20mA ; (5)Output diode current:±50mA ; (6)DC output current:±50mA ; (7)DC VCC/ground current:±200mA ; (8)Power dissipation:180mW ; (9)Storage temperature:-65℃ to 150℃.
Features
Features: (1)High speed: tpd = 4.8 ns (typ.) at VCC = 5 V ; (2)Low power dissipation: ICC = 8 μA (max) at Ta = 25℃; (3)High noise immunity: VNIH = VNIL = 28% VCC (min) ; (4)Wide operating voltage range: VCC (opr) = 2 to 5.5 V ; (5)Pin and function compatible with 74F373.

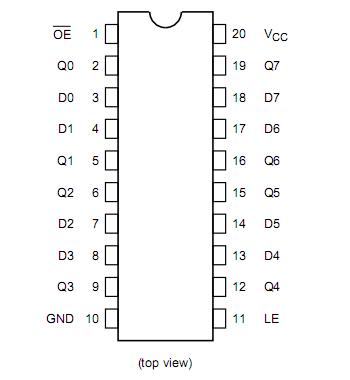

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC74AC373FW |
|
IC LATCH OCT D-TYPE 3-ST 20-SOL |
Data Sheet |
Negotiable |
|
||||||
|
TC74AC373FW(F) |
|
IC LATCH OCT D-TYPE 3-ST 20-SOL |
Data Sheet |
|
|
||||||
