Product Summary

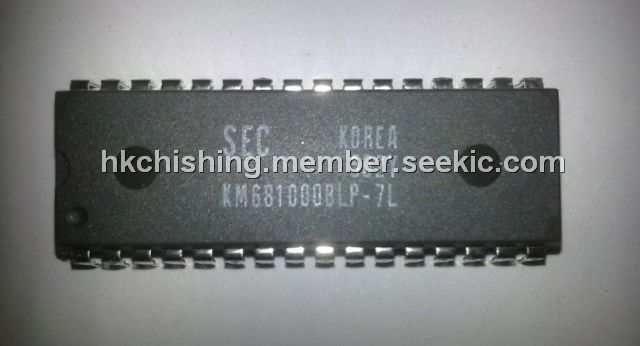

The KM681000BLP-7L is a 128K x8 bit Low Power CMOS Static RAM. It is fabricated by SAMSUNG’s advanced CMOS process technology.

Parametrics

Absolute maximum ratings: (1)Voltage on any pin relative to Vss:-0.5V to 7.0V; (2)Voltage on Vcc supply relative to Vss:-0.5V to 7.0V; (3)Power Dissipation:1.0W; (4)Storage temperature:-65℃ to 150℃; (5)Operating Temperature:0℃ to 70℃; (6)Soldering temperature and time:260℃,10sec (Lead Only).

Features

Features: (1)Organization : 128Kx8; (2)Power Supply Voltage: Single 5.0V-10%; (3)Low Data Retention Voltage: 2V(Min); (4)Three state output and TTL Compatible; (5)Package Type: JEDEC Standard,32-DIP, 32-SOP, 32-TSOP I R/F.

Diagrams
