Product Summary
The TD62003AP is a high voltage, high current darlington driver comprised of seven NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers.
Parametrics
TD62003AP absolute maximum ratings: (1)Output Sustaining Voltage, VCE (SUS): -0.5~50V; (2)Output Current, IOUT: 500 mA/ch; (3)Input Voltage, VIN: -0.5~30 V; (4)Input Current, IIN: 25 mA; (5)Clamp Diode Reverse Voltage, VR: 50V; (6)Clamp Diode Forward Current, IF: 500 mA; (7)Power Dissipation, PD: 1.47W; (8)Operating Temperature, Topr: -40~85℃; (9)Storage Temperature, Tstg: -55~150℃.
Features
TD62003AP features: (1)Output current (single output) 500 mA MAX; (2)High sustaining voltage output: 50 V MIN; (3)Output clamp diodes; (4)Inputs compatible with various types of logic; (5)Package Type: DIP-16 pin.

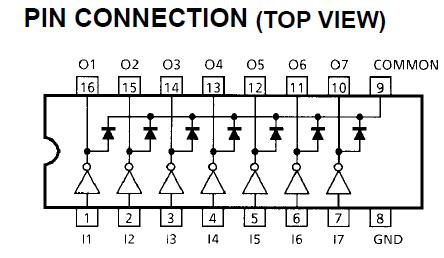

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TD62003AP(J,S) |
|
IC DRIVER DARL SNK TTL 7CH 16DIP |
Data Sheet |
Negotiable |
|
||||||||||||
 |
TD62003APA |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TD62003APG(O,N) |
Toshiba |
LED Lighting Drivers 7-Ch NPN Driver 500mA 50V 2.7k |
Data Sheet |
|
|
||||||||||||
|
TD62003APG(5,J,S) |
Toshiba |
LED Lighting Drivers 7CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TD62003APG |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
