Product Summary
The 82C51AM-2 is a industry standard universal synchronous receiver. It is fabricated using C-MOS silicon gate technology.
Parametrics
Absolute maximum ratings: (1)power supply voltage:-0.5V to 7.0V; (2)input voltage:-0.5V to VCC+0.5V; (3)output voltage:-0.5V to VCC+0.5V; (4)power dissipation:250mW; (5)soldering temperature(10sec):260℃; (6)storage temperature:-65℃ to 150℃; (7)operating temperature:-40℃ to 85℃.
Features
Features: (1)5-8bit characters; (2)internal or external character synchronization; (3)single or double character synchronization; (4)automatic sync character insertion; (5)full-duplex, double-buffered,transmitter and receiver; (6)error detection parity, overrun and framing; (7)single +5V supply:5V±10%.

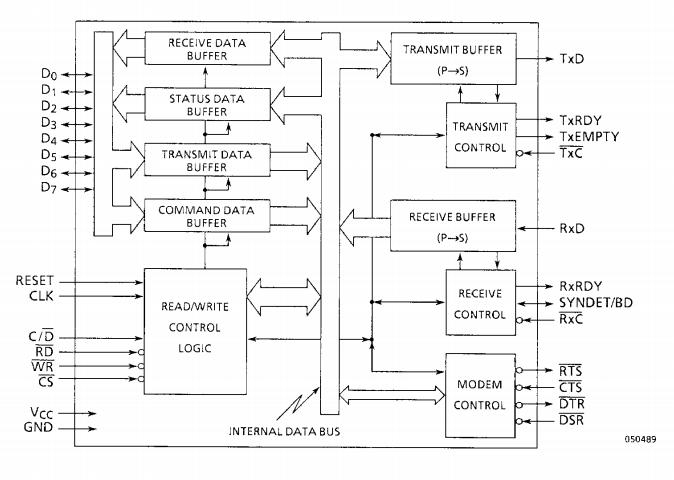

Diagrams
![]() |
