Product Summary
The TD62503FNG is a 7ch Single Driver. It is comprised of seven or five NPN Transistor Arrays. Applications include relay, hammer, Lamp and display (LED) drivers.
Parametrics
Absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 35 V; (2)Collector-base voltage, VCBO: 50 V; (3)Collector current, IC: 200 mA/ch; (4)Input voltage, VIN: -0.5 to 30 V; (5)Power dissipation, PD: 0.78 W; (6)Operating temperature, Topr: -40 to 85 ℃; (7)Storage temperature, Tstg: -55 to 150 ℃.
Features
Features: (1)Output current (single output) 200 mA max; (2)High sustaining voltage output 35 V min; (3)Inputs compatible with various types of logic; (4)RIN = 2.7 kΩ TTL, 5 V C-MOS; (5)Package type: SSOP-16 pin (0.65 mm pitch).

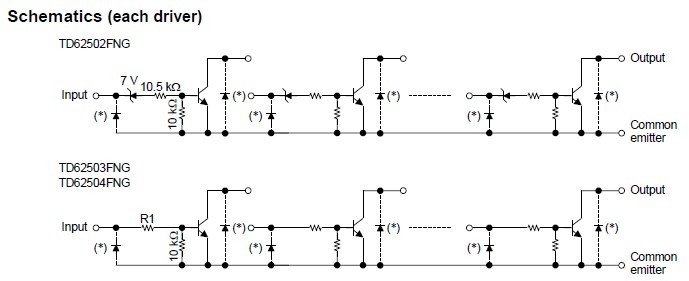

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
TD62503FNG |
Other |
Data Sheet |
Negotiable |
|
||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
TD62001AF |
Other |
Data Sheet |
Negotiable |
|
||||||
TD62001AF(EL) |
IC DRIVER DARL SINK GP 7CH 16SOP |
Data Sheet |
Negotiable |
|
||||||
TD62001AF(S) |
Toshiba |
IC DRIVER DARL SINK GP 7CH 16SOP |
Data Sheet |
Negotiable |
|
|||||
TD62001AFG |
Other |
Data Sheet |
Negotiable |
|
||||||
TD62001AFG(5,S) |
Toshiba |
Transistors Darlington 7CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
|||||
TD62001AFG(5,S,EL) |
Toshiba |
Transistors Darlington 7CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
