Product Summary

The SR05.TC is a Low Capacitance TVS Diode Array, which is designed to protect high speed data interfaces. The SR05.TC has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. The applications of the SR05.TC include USB Power & Data Line Protection, Ethernet 10BaseT, I2C Bus Protection, Video Line Protection, T1/E1 secondary IC Side Protection, Portable Electronics, Microcontroller Input Protection, WAN/LAN Equipment, ISDN S/T Interface.

Parametrics

SR05.TC absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs): 500 Watts; (2)Peak Pulse Current (tp = 8/20μs): 25 A; (3)Peak Forward Voltage (IF = 1A, tp=8/20μs): 1.5 V; (4)Lead Soldering Temperature: 260 (10 sec.) ℃; (5)Operating Temperature: -55 to +125 ℃; (6)Storage Temperature: -55 to +150 ℃.

Features

SR05.TC features: (1)ESD protection to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact), IEC 61000-4-4 (EFT) 40A (5/50ns), IEC 61000-4-5 (Lightning) 24A (8/20μs); (2)Array of surge rated diodes with internal TVS Diode; (3)Protects two I/O lines; (4)Low capacitance (<10pF) for high-speed interfaces; (5)Low clamping voltage; (6)Low operating voltage: 5.0V; (7)Solid-state silicon-avalanche technology.

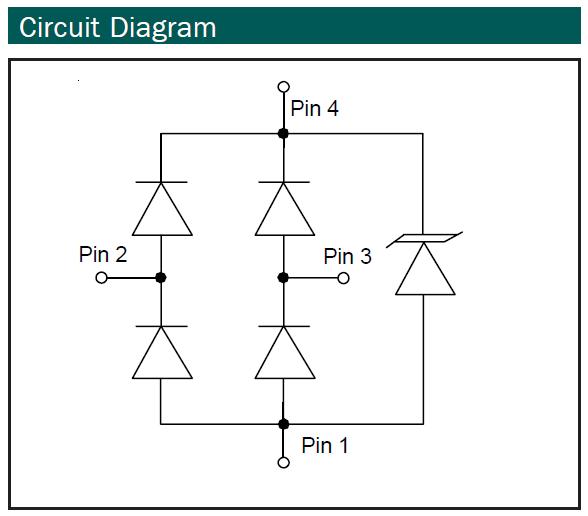

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SR05.TCT
SR05.TCT


IC TVS ARRAY 2-LINE 5V SOT-143

Data Sheet

0-1: $1.11
1-25: $0.75
25-100: $0.64
100-1000: $0.60
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SR05
SR05

Switchcraft

XLR Connectors GRN STRN RLF-25/BAG

Data Sheet

0-1: $8.18
1-10: $6.14
10-25: $5.78
25-50: $5.41
SR05.TCT
SR05.TCT


IC TVS ARRAY 2-LINE 5V SOT-143

Data Sheet

0-1: $1.11
1-25: $0.75
25-100: $0.64
100-1000: $0.60
SR0500472
SR0500472

Hammond Manufacturing

Enclosures, Boxes, & Cases MODIFIED 20" DEEP RMCV190313BK1

Data Sheet

0-4: $94.38
4-10: $52.85
10-25: $49.08
SR0500473
SR0500473

Hammond Manufacturing

Enclosures, Boxes, & Cases MODIFIED RMP1913 20#

Data Sheet

0-1: $24.38
1-10: $21.87
10-25: $19.60
25-50: $17.92
SR0520 - SR052000
SR0520 - SR052000

Other


Data Sheet

Negotiable
