Product Summary
The XP4313-(TX) is a Silicon NPN epitaxial planar type which is designed for switching/digital circuits.
Parametrics
XP4313-(TX) absolute maximum ratings: (1)Collector-base voltage (Emitter open): 50 V; (2)Collector-emitter voltage (Base open): 50 V; (3)Collector current: 100 mA; (4)Collector-base voltage (Emitter open): -50 V; (5)Collector-emitter voltage (Base open): -50 V; (6)Collector current: -100 mA; (7)Total power dissipation: 150 mW; (8)Junction temperature: 150 ℃; (9)Storage temperature: -55 to +150 ℃.
Features
XP4313-(TX) features: (1)Two elements incorporated into one package (Transistors with built-in resistor); (2)Reduction of the mounting area and assembly cost by one half.

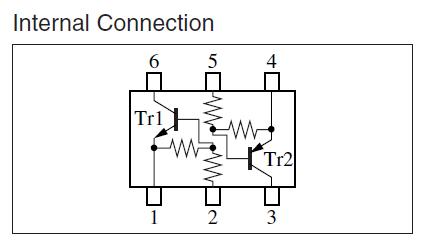

Diagrams
 |
