Product Summary

The CRS08 is a switching mode power supply applications portable equipment battery applications.

Parametrics

CRS08 maximum ratings: (1)Repetitive peak reverse voltage VRRM: 30 V; (2)Average forward current IF (AV): 1.5 A; (3)Peak one cycle surge forward current (non-repetitive) IFSM: 30 (50 Hz) A; (4)Junction temperature Tj: -40~125 ℃; (5)Storage temperature Tstg: -40~150 ℃.

Features

CRS08 features: (1)Forward voltage: VFM = 0.36 V (max); (2)Average forward current: IF (AV) = 1.5 A; (3)Repetitive peak reverse voltage: VRRM = 30 V; (4)Suitable for compact assembly due to small surface-mount package "S.FLATTM" (Toshiba package name).

Diagrams

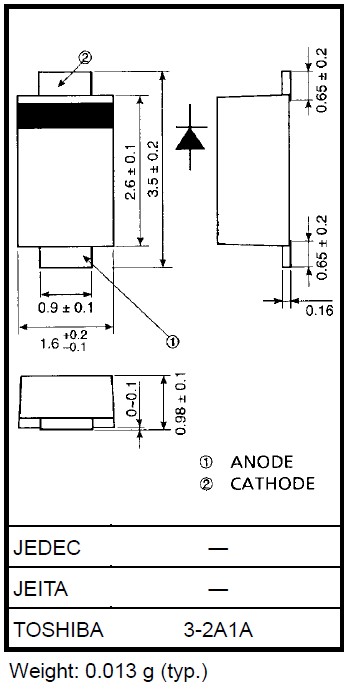

CRS08 package

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CRS08(TE85L,Q,M)
CRS08(TE85L,Q,M)

Toshiba

Schottky (Diodes & Rectifiers) Diode Schottky 30V, 1.5A

Data Sheet

0-1: $0.13
1-10: $0.10
10-100: $0.09
100-250: $0.08
CRS08(TE85R,Q,M)
CRS08(TE85R,Q,M)

Toshiba

Schottky (Diodes & Rectifiers) Diode Schottky 30V 1.5A Vf=0.36V

Data Sheet

Negotiable
CRS08x
CRS08x

Toshiba

Schottky (Diodes & Rectifiers) 30V 1.5A

Data Sheet

Negotiable
CRS08(TE85L)
CRS08(TE85L)


RECT SCHOTTKY 30V 1.5A SFLAT

Data Sheet

Negotiable
CRS08
CRS08

Other


Data Sheet

Negotiable
