Product Summary

The RK73B2ATTD472J is a flat chip resistor (anti-sulfuration).

Parametrics

RK73B2ATTD472J maixmum ratings: (1)Power Rating @ 70℃: 0.125W; (2)T.C.R. (ppm/℃) Max.: ±200ppm/℃; (3)Resistance Range: 1.02MΩ - 10MΩ; (4)Maximum Working Voltage: 150V; (5)Maximum Overload Voltage: 200V; (6)Rated Ambient Temp.: +70℃; (7)Operating Temp. Range: -55℃ to +155℃.

Features

RK73B2ATTD472J features: (1)Excellent anti-sulfuration characteristic due to using high sulfuration-proof inner top electrode material; (2)Excellent heat resistance and weather resistance are ensured by the use of metal glaze thick film; (3)High stability and high reliability with the triple-layer structure of electrode; (4)Suitable for both flow and reflow solderings; (5)Products with lead-free terminations meet EU RoHS requirements.

Diagrams

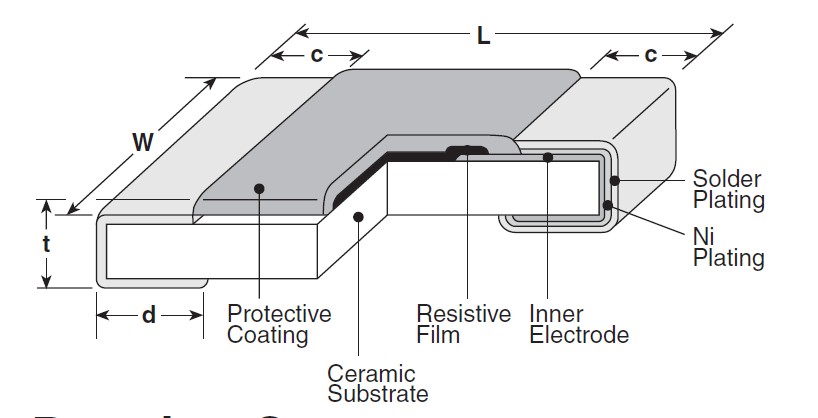

RK73B2ATTD472J dimensions and construction

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RK73B2ATTD472J
RK73B2ATTD472J

KOA Speer

Thick Film Resistors - SMD 1/8watts 4.7Kohms 5%

Data Sheet

0-1: $0.05
1-100: $0.01
100-1000: $0.01
1000-5000: $0.00
