Product Summary
The NJG1523KB2-TE1 is a SPDT switch IC featured low insertion loss, medium handling power and high isolation. This NJG1523KB2-TE1 is suitable for switching of Tx/Rx signals at sub-microwave applications. This switch exhibits wide frequency range from 50MHz to 3.0GHz at low operating voltage of 2.5V, and is operated up to 25dBm at 3.0V operating voltage. The ultra small & ultra thin FLP6 package is applied.
Parametrics
NJG1523KB2-TE1 absolute maximum ratings: (1)Input Power Pin VCTL (L)=0V, VCTL (H)=2.7V: 32 dBm; (2)Control Voltage VCTL VCTL (H)-VCTL (L): 7.5 V; (3)Power Dissipation PD: 450 mW; (4)Operating Temp. Topr: -30~+85 ℃; (5)Storage Temp. Tstg: -55~+125 ℃.
Features
NJG1523KB2-TE1 features: (1)Singe ow votage contro: +2.5~+6.5V; (2)Low insertion oss 0.4dB typ. @f=1GHz, Pin=23dBm: 0.5dB typ. @f=2GHz, Pin=23dBm; (3)High isoation: 29dB typ. @f=2GHz, Pin=23dBm; (4)Handing power: 25dBm max. @f=2GHz, VCTL=3.0V; (5)Low current consumption: 8uA typ. @f=0.05~2.5GHz, Pin=23dBm; (6)Utra sma & utra thin package: FLP6-B2 (Mount Size: 2.1x2.0x0.75mm).

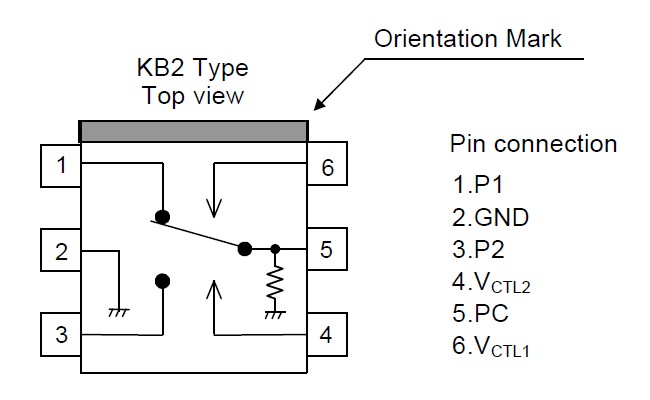

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJG1523KB2-TE1 |
NJR |
RF Switch ICs SPDT |
Data Sheet |
|
|
||||||||||||
