AD8313ARM

70 dB, Logarithmic Detector/Controller, MSOP8, 0.1 GHz to 2.5 GHz, 60 mW at 3 V, 0 V VPOS

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~2.50

PartNumber:: AD8313ARM

Brand:: Analog Devices - ADI | Pack: MSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-12

From Other Seller

Part Number:AD8313ARM
US $1.80 - 2.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

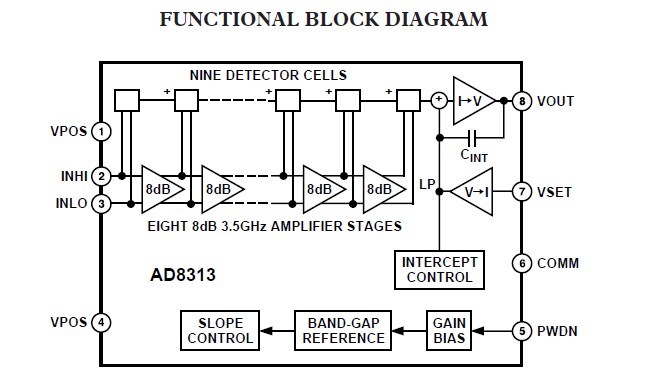

The AD8313ARM is a complete multistage demodulating logarithmic amplifier, capable of accurately converting an RF signal at its differential input to an equivalent decibel-scaled value at its dc output. The AD8313ARM maintains a high degree of log conformance for signal frequencies from 0.1 GHz to 2.5 GHz and is useful over the range of 10 MHz to 3.5 GHz. The nominal input dynamic range is –65 dBm to 0 dBm (re: 50 W), and the sensitivity of the AD8313ARM can be increased by 6 dB or more with a narrow band input impedance matching network or balun. Application is straightforward, requiring only a single supply of 2.7 V–5.5 V and the addition of a suitable input and supply decoupling. Operating on a 3 V supply, its 13.7 mA consumption (for TA =+25℃) amounts to only 41 mW. A power-down feature of the AD8313ARM is provided; the input is taken high to initiate a low current (20 mA) sleep mode, with a threshold at half the supply voltage.

Parametrics

AD8313ARM absolute maximum ratings: (1)Supply Voltage VS: 5.5 V; (2)VOUT, VSET, PWDN: 0 V, VPOS; (3)Input Power Differential (re: 50 W, 5.5 V): +25 dBm; (4)Input Power Single-Ended (re: 50 W, 5.5 V): +19 dBm; (5)Internal Power Dissipation: 200 mW; (6)qJA: 200℃/W; (7)Maximum Junction Temperature: +125℃; (8)Operating Temperature Range: –40℃ to +85℃; (9)Storage Temperature Range: –65℃ to +150℃; (10)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

AD8313ARM features: (1)Wide Bandwidth: 0.1 GHz to 2.5 GHz Min; (2)High Dynamic Range: 70 dB to 63.0 dB; (3)High Accuracy: 61.0 dB over 65 dB Range (@ 1.9 GHz); (4)Fast Response: 40 ns Full-Scale Typical; (5)Controller Mode with Error Output; (6)Scaling Stable Over Supply and Temperature; (7)Wide Supply Range: +2.7 V to +5.5 V; (8)Low Power: 40 mW at 3 V; (9)Power-Down Feature: 60 mW at 3 V; (10)Complete and Easy to Use.
