Product Summary

The RK73H2ATTD6201F is a precision 0.5%,1%tolerance thick film chip resistor.

Parametrics

RK73H2ATTD6201F maximum ratings: (1)Power Rating @ 70℃: 1/8W (125W); (2)T.C.R. (ppm/℃) Max.: ±100; (3)Resistance Range E-24, E-96 (D±0.5%): 10Ω - 1MΩ; (4)Resistance Range E-24, E-96 (F±1%): 10Ω - 1MΩ; (5)Absolute Maximum Working Voltage: 150V; (6)Absolute Maximum Overload Voltage: 200V; (7)Operating Temperature Range: -55 to 155℃.

Features

RK73H2ATTD6201F features: (1)Resistance: 6.2 KOhms; (2)Tolerance: 1 %; (3)Power Rating: 0.125 Watt (1/8 Watt); (4)Temperature Coefficient: +/- 100 PPM / ℃; (5)Series: RK73H; (6)Termination Style: SMD/SMT; (7)Package / Case: 0805 (2013 metric); (8)Voltage Rating: 150 Volts; (9)Operating Temperature Range: - 55 C to + 155 ℃; (10)Dimensions: 1.25 mm W x 2 mm L x 0.5 mm H; (11)Product: Thick Film Resistors SMD; (12)Standard Pack Qty: 5000.

Diagrams

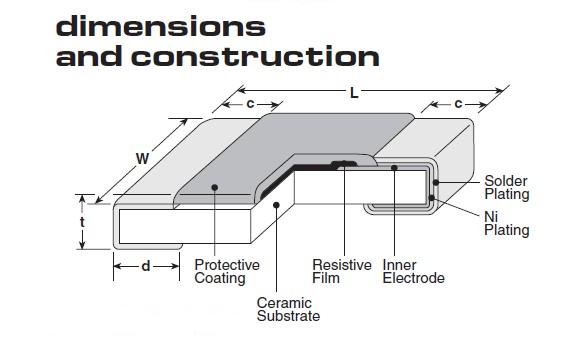

RK73H2ATTD6201F dimensions and construction

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RK73H2ATTD6201F
RK73H2ATTD6201F

KOA Speer

Thick Film Resistors - SMD 1/8watts 6.2Kohms 1%

Data Sheet

0-1: $0.05
1-100: $0.02
100-1000: $0.01
1000-5000: $0.01
