Product Summary
The PEB2054N (Extended PCM Interface Controller) is a highly integrated controller circuit optimized for analog and ISDN line card and central switches applications. The PEB2054N provides the circuitry necessary to manage up to 32 digital (ISDN or proprietary) or 64 analog subscribers. The PEB2054N is dedicated to switch PCM data between two serial interfaces, the system interface (PCM interface) and the configurable interface (CFI). The PEB2054N performs non-blocking time and space switching for up to 128 channels.
Parametrics
PEB2054N absolute maximum ratings: (1)Ambient temperature under bias: PEB: 0 to 70 ℃, PEF: -40 to 85 ℃; (2)Storage temperature: - 65 to 125 ℃; (3)Voltage on any pin with respect to ground: - 0.4 to VDD + 0.4 V; (4)Maximum voltage on any pin: 6 V.
Features
PEB2054N features: (1)Board Controller for up to: 32 ISDN or 64 analog subscribers (PEB 2055), 16 ISDN or 32 analog subscribers (PEB 2054); (2)Non-blocking switch for: 128 channels (PEB 2055), 64 channels (PEB 2054); (3)Switching of 16-, 32-, or 64-kbit/s channels; (4)Two consecutive 64-kbit/s channels can be switched as a single 128-kbit/s channel; (5)Freely programmable time slot assignment for all subscribers; (6)Two serial interfaces (PCM and CFI) programmable over a wide data range (128 - 8192 kbit/s).

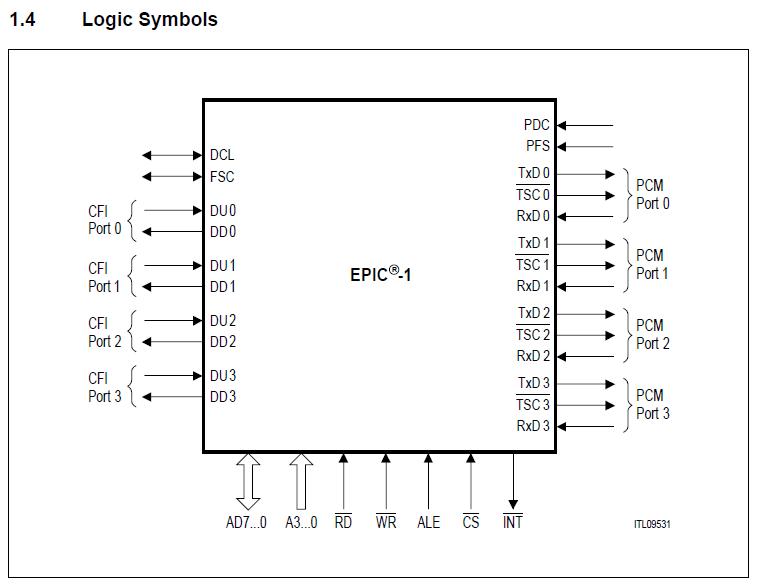

Diagrams
