Product Summary
The MA132K-TX is a Silicon epitaxial planar type, which is designed for switching circuits.
Parametrics
MA132K-TX absolute maximum ratings: (1)Reverse voltage (DC): 80 V; (2)Peak reverse voltage: 80 V; (3)Forward current (DC): 100 mA; (4)Peak forward current: 225 mA; (5)Non-repetitive peak forward surge current*: 500 mA; (6)Junction temperature: 150 ℃; (7)Storage temperature: -55 to +150 ℃.
Features
MA132K-TX features: (1)Short reverse recovery time trr; (2)Small terminal capacitance, Ct; (3)Super-small SS-mini type package, allowing high-density mounting.

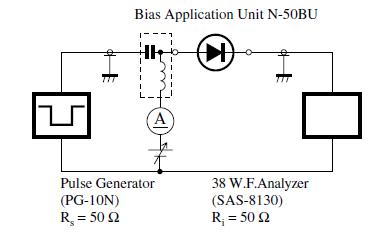

Diagrams
 |
