Product Summary
The M63991FP is a high voltage Power MOSFET and IGBT module driver for half bridge applications. The applications of the M63991FP are: PDP. HID lamp; MOSFET and IGBT inverter module driver for refrigerator, air-conditioner, washing machine, AC-servomotor and general purpose.
Parametrics
M63991FP absolute maximum ratings: (1)VB High Side Floating Supply Voltage: –0.5~624V; (2)VS High Side Floating Supply Offset Voltage: VB–24 ~ VB+0.5V; (3)VHO High Side Output Voltage: VS–0.5 ~ VB+0.5V; (4)VCC Low Side Fixed Supply Voltage: –0.5 ~ 24V; (5)VLO Low Side Output Voltage: –0.5 ~ VCC+0.5V; (6)VDD Logic Supply Voltage: –0.5 ~ 7V; (7)VIN Logic Input Voltage: –0.5 ~ VDD+0.5V; (8)dVS/dt Allowable Offset Supply Voltage Transient: ±50V/ns; (9)Pt Package Power Dissipation: 0.89W; (10)K q Linear Derating Factor: 8.9mW/℃; (11)Rth(j-c) Junction-Case Thermal Resistance: 45℃/W; (12)Tj Junction Temperature: –20 ~ 125℃; (13)Topr Operation Temperature: –20 ~ 75℃; (14)Tstg Storage Temperature: –40 ~ 125℃.
Features
M63991FP features: (1)Floating supply voltage 600V; (2)Output current ±500mA; (3)Half bridge driver; (4)SOP-16.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

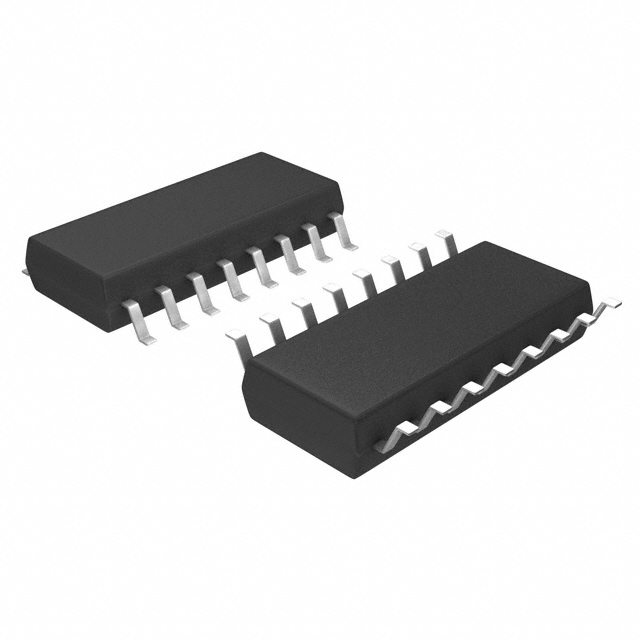

M63991FP |
HVIC DRVR HB 600V 0.05A 16-SOP |
Data Sheet |
|
|
||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
M63954P |
HVIC DRVR HB 600V 0.5A 16-DIP |
Data Sheet |
|
|
||||||||
M63975FP |
Other |
Data Sheet |
Negotiable |
|
||||||||
M63991FP |
HVIC DRVR HB 600V 0.05A 16-SOP |
Data Sheet |
|
|
||||||||
M63992FP |
HVIC DRVR HB 600V 2A 16-SOP |
Data Sheet |
|
|
||||||||
M63993FP |
Other |
Data Sheet |
Negotiable |
|
||||||||
M63994FP |
Other |
Data Sheet |
Negotiable |
|
