Product Summary
The SN74AHCT32PWR is a quadruple 2-input positive-OR gate. The SN74AHCT32PWR performs the Boolean function Y = A · B or Y = A + B in positive logic.
Parametrics
SN74AHCT32PWR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –0.5 V to 7 V; (3)Output voltage range, VO: –0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): –20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±50 mA; (8)Storage temperature range, Tstg: –65℃ to 150℃.
Features
SN74AHCT32PWR features: (1)Inputs Are TTL-Voltage Compatible; (2)Latch-Up Performance Exceeds 250 mA Per JESD 17; (3)ESD Protection Exceeds JESD 22.

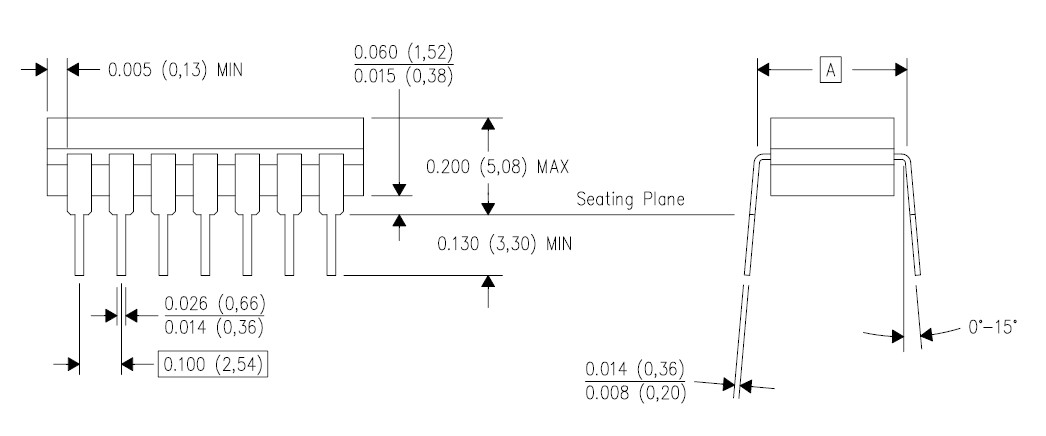

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74AHCT32PWR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-Input Pos |
Data Sheet |
|
|
||||||||||||
|
SN74AHCT32PWRE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-OR Gates |
Data Sheet |
|
|
||||||||||||
|
SN74AHCT32PWRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-OR Gates |
Data Sheet |
|
|
||||||||||||
