Product Summary

The 1SS181 is a diode with ultra high speed switching applications.

Parametrics

1SS181 absolute maximum ratings: (1)Peak reverse voltage, VRM: 85V; (2)Reverse voltage, VR: 800V; (3)Peak forward current, VFM: 300mA; (4)Average forward current, IO: 100mA; (5)Surge current, IFSM: 2mW; (6)Power dissipation, P: 150mW; (7)Junction temperature, Tj: 125℃; (8)Storage temperature, Tstg: -55 to 125℃.

Features

1SS181 features: (1)Small package; (2)Low forward voltage; (3)Fast reverse recovery time; (4)Small tatal capacitance.

Diagrams

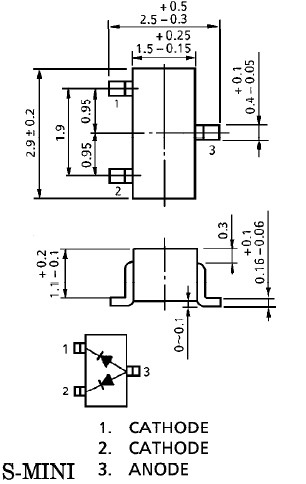

1SS181 package diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1SS181
1SS181

Other


Data Sheet

Negotiable
1SS181(TE85L,F)
1SS181(TE85L,F)

Toshiba

Rectifiers Diode

Data Sheet

Negotiable
1SS181S,LF
1SS181S,LF

Toshiba

Rectifiers Ultra High Speed 0.92 VF 85VRM 80VR

Data Sheet

0-1: $0.03
1-10: $0.03
10-100: $0.02
100-250: $0.02
1SS181T5LFT
1SS181T5LFT

Toshiba

Rectifiers Diode

Data Sheet

0-1800: $0.06
1800-2000: $0.05
2000-5000: $0.04
5000-10000: $0.03
