Product Summary

The RK73B1JTTD-103J is a surface mount thick film resistor.

Parametrics

RK73B1JTTD-103J maximum ratings: (1)Power Rating @70℃: 1/10W; (2)T.C.R. Max: 100 to 400ppm/℃; (3)Resistance Range E24 5%: 1.0-10MΩ; (4)Resistance Range E96 1%: 10-1MΩ; (5)Absolute Max Working Volt: 50V; (6)Absolute Max Overload Volt: 100V; (7)Operating Temp Range: -55 ~ +155℃.

Features

RK73B1JTTD-103J features: (1)Resistance: 10 KOhms; (2)Tolerance: 5 %; (3)Power Rating: 0.1 Watt (1/10 Watt); (4)Temperature Coefficient: +/- 200 PPM / ℃; (5)Series: RK73B; (6)Termination Style: SMD/SMT; (7)Package / Case: 0603 (1608 metric); (8)Voltage Rating: 50 Volts; (9)Operating Temperature Range: - 55 to + 155℃; (10)Packaging: Reel; (11)Dimensions: 0.8 mm W x 1.6 mm L x 0.45 mm H; (12)Product: Thick Film Resistors SMD; (13)Standard Pack Qty: 5000.

Diagrams

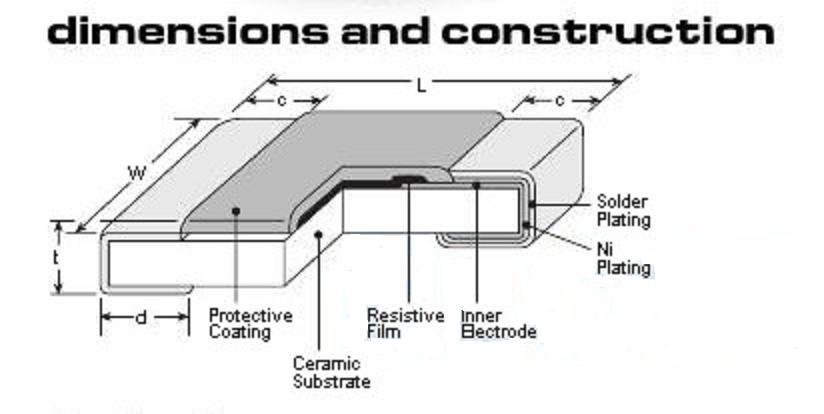

RK73B1JTTD-103J block diagram
