Product Summary
The MIC4680-5.OYM is an easy-to-use fixed or adjustable output voltage step-down (buck) switch-mode voltage regulator. The MIC4680-5.OYM achieves up to 1.3A of continuous output current over a wide input range in a 8-lead SOP (small outline package). The MIC4680-5.OYM is available in 3.3V and 5V fixed output versions or adjustable output down to 1.25V. The MIC4680-5.OYM has an input voltage range of 4V to 34V, with excellent line, load, and transient response. The regulator performs cycle-by-cycle current limiting and thermal shutdown for protection under fault conditions. In shutdown mode, the regulator draws less than 2μA of standby current. The MIC4680-5.OYM SuperSwitcher. regulator requires a minimum number of external components and can operate using a standard series of inductors and capacitors. Frequency compensation is provided internally for fast transient response and ease of use.
Parametrics
MIC4680-5.OYM absolute maximum ratings: (1)Supply Voltage (VIN): +38V; (2)Shutdown Voltage (VSHDN): –0.3V to +38V; (3)Steady-State Output Switch Voltage (VSW) : –1V; (4)Feedback Voltage [Adjustable] (VFB): +12V; (5)Storage Temperature (TS): –65℃ to +150℃.
Features
MIC4680-5.OYM features: (1)SO-8 package with up to 1.3A output current; (2)All surface mount solution; (3)Only 4 external components required; (4)Fixed 200kHz operation; (5)3.3V, 5V, and adjustable output versions; (6)Internally compensated with fast transient response; (7)Wide 4V to 34V operating input voltage range; (8)Less than 2μA typical shutdown-mode current; (9)Up to 90% efficiency; (10)Thermal shutdown; (11)Overcurrent protection.

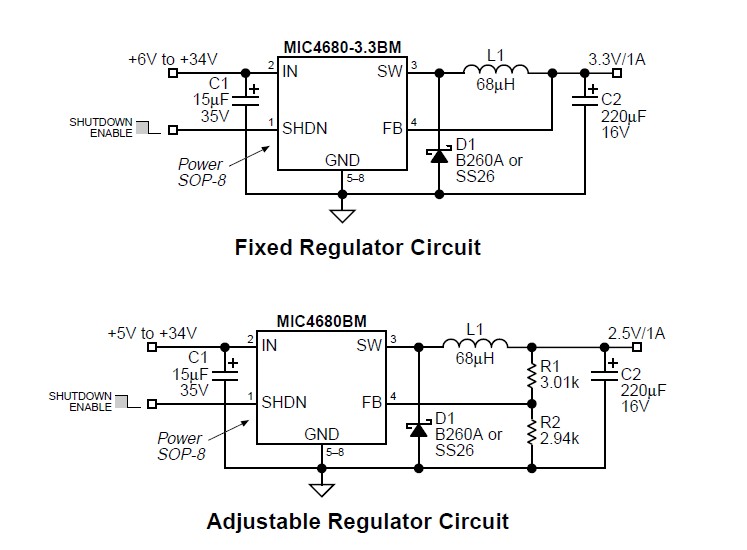

Diagrams
![]() |
