Product Summary
The AQV201A is a High Function Type 1-Channel Type. The typical applications of the AQV201A are: High-speed inspection machines; Telephone equipment; Data communication equipment; Computer.
Parametrics
AQV201A maximum ratings: (1)LED forward current IF: 50 mA; (2)LED reverse voltage VR: 6 V; (3)Peak forward current IFP: 1 A f = 100 Hz, Duty factor = 0.1%; (4)Power dissipation Pin: 150 mW; (5)Power dissipation Pout: 360 mW; (6)Total power dissipation PT: 410 mW; (7)I/O isolation voltage Viso: 1,500 V (AC); (8)Temperature limits Operating Topr: –40℃ to +85℃ –40°F to +185°F Non-condensing at low temperatures; (9)Storage Tstg: –40℃ to +100℃ –40°F to +212°F.
Features
AQV201A features: (1)Controls low-level analog signals; (2)Control with low-level input signals; (3)Controls various types of loads such as relays, motors, lamps and solenoids.; (4)Optical coupling for extremely high isolation; (5)Eliminates the need for a counter electromotive force protection diode in the drive circuits on the input side; (6)Stable on resistance; (7)Low-level off state leakage current; (8)Eliminates the need for a power supply to drive the power MOSFET; (9)Low thermal electromotive force.

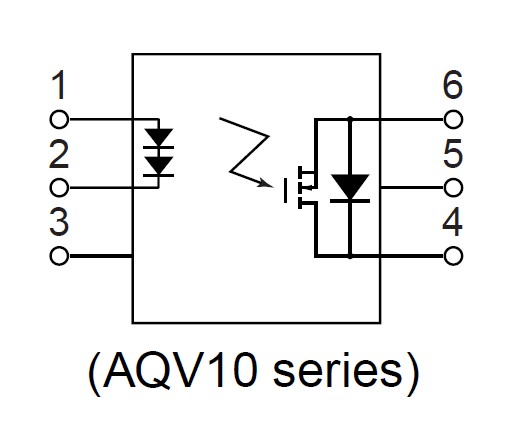

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AQV201A |
Panasonic Electric Works |
Solid State Relays 700MA 40V 6PIN SPST |
Data Sheet |
|
|
|||||||||||||
AQV201AX |
Panasonic Electric Works |
Solid State Relays 40v 500mA DIP Form A Norm-Open |
Data Sheet |
|
|
|||||||||||||
AQV201AZ |
Panasonic Electric Works |
Solid State Relays 40v 500mA DIP Form A Norm-Open |
Data Sheet |
|
|
