Product Summary
The GAL16V8D-15LJ is a High Performance E2CMOS PLD Generic Array Logic. It is at 3.5 ns maximum propagation delay time, combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest speed performance available in the PLD market. High speed erase times (<100ms) allow the devices to be reprogrammed quickly and efficiently. The generic architecture of GAL16V8D-15LJ provides maximum design flexibility by allowing the Output Logic Macrocell (OLMC) to be configured by the user. An important subset of the many architecture configurations possible with the GAL16V8D-15LJ are the PAL architectures listed in the table of the macrocell description section. The GAL16V8D-15LJ is capable of emulating any of these PAL architectures with full function/fuse map/parametric compatibility.
Parametrics
GAL16V8D-15LJ absolute maximum ratings: (1)Supply voltage VCC: –0.5 to +7V; (2)Input voltage applied: –2.5 to VCC +1.0V; (3)Off-state output voltage applied: –2.5 to VCC +1.0V; (4)Storage Temperature: –65 to 150℃; (5)Ambient Temperature with Power Applied: –55 to 125℃.
Features
GAL16V8D-15LJ features: (1)high performance e2cmos technology: 3.5 ns Maximum Propagation Delay, Fmax = 250 MHz, 3.0 ns Maximum from Clock Input to Data Output, UltraMOS Advanced CMOS Technology; (2)50% to 75% reduction in power from bipolar: 75mA Typ Icc on Low Power Device, 45mA Typ Icc on Quarter Power Device; (3)active pull-ups on all pins; (4)E2 cell technology: Reconfigurable Logic, Reprogrammable Cells, 100% Tested/100% Yields, High Speed Electrical Erasure (<100ms), 20 Year Data Retention.

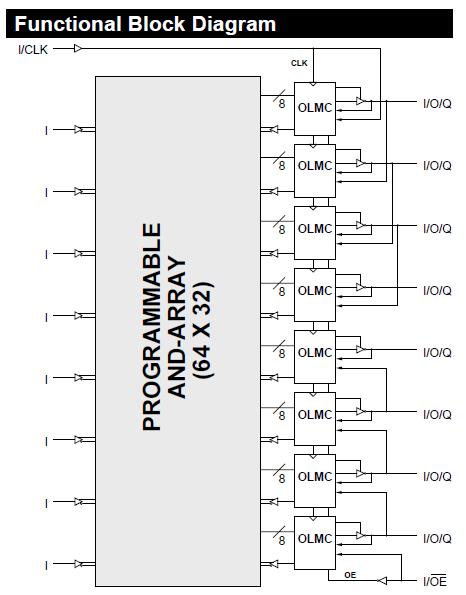

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GAL16V8D-15LJ |
Lattice |
SPLD - Simple Programmable Logic Devices 5V 16 I/O |
Data Sheet |
|
|
||||||
|
GAL16V8D-15LJI |
Lattice |
SPLD - Simple Programmable Logic Devices 16 INPUT 8 OUTPUT 5V LOW POWER 15ns |
Data Sheet |
|
|
||||||
|
GAL16V8D-15LJNI |
Lattice |
SPLD - Simple Programmable Logic Devices 16 INPUT 8 OUTPUT 5V LOW POWER 15ns |
Data Sheet |
|
|
||||||
|
GAL16V8D-15LJN |
Lattice |
SPLD - Simple Programmable Logic Devices 16 Input 8 Output 5V Low Power 15ns |
Data Sheet |
|
|
||||||
