Product Summary
The MAX488EPA is a transceiver. The MAX488EPA features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The MAX488EPA applications are: Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.
Parametrics
MAX488EPA absolute maximum ratings: (1)Supply Voltage (VCC): 12V; (2)Control Input Voltage (RE, DE): -0.5V to (VCC + 0.5V); (3)Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (4)Driver Output Voltage (A, B): -8V to +12.5V; (5)Receiver Input Voltage (A, B): -8V to +12.5V; (6)Receiver Output Voltage (RO): -0.5V to (VCC +0.5V); (7)8-Pin Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; (8)14-Pin Plastic DIP (derate 10.00mW/℃ above +70℃): 800mW; (9)8-Pin SO (derate 5.88mW/℃ above +70℃): 471mW; (10)14-Pin SO (derate 8.33mW/℃ above +70℃): 667mW; (11)8-Pin μMAX (derate 4.1mW/℃ above +70℃): 830mW; (12)8-Pin CERDIP (derate 8.00mW/℃ above +70℃): 640mW; (13)14-Pin CERDIP (derate 9.09mW/℃ above +70℃): 727mW; (14)Storage Temperature Range: -65℃ to +160℃; (15)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX488EPA features: (1)+5V, Fail-Safe, 20Mbps, Profibus RS-485/RS-422 Transceivers; (2)+3.3V, High-Speed, RS-485/RS-422 Transceiver in a SOT23 Package; (3)DATA rate: 0.25Mbps; (4)Quiescent current: 120μA; (5)Pin count: 8.

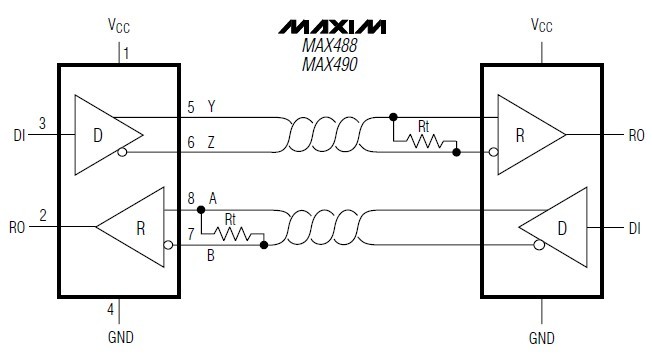

Diagrams
