Product Summary

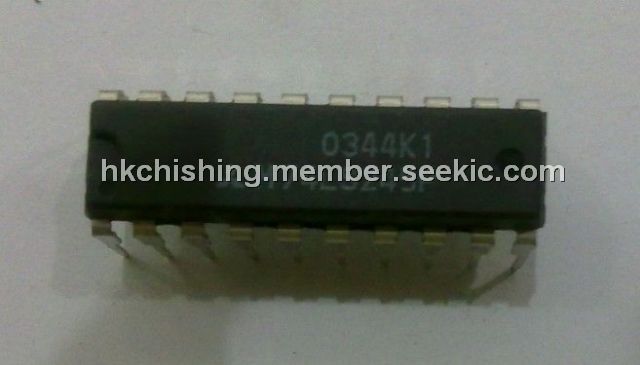

The M74LS245P is a semiconductor integrated circuit containing of 8 bus transmitter/receiver circuits with noninverted outputs.

Parametrics

Absolute maximum ratings: (1)supply voltage:-0.5V to +7V; (2)input voltage: A,B:-0.5V to +5.5V, DIR, OC:-0.5V to +15V; (3)output voltage:-0.5V to +5.5V; (4)operating free-air ambient temperature range:-20℃ to +75℃; (5)storage temperature range:-65℃ to +150℃.

Features

Features: (1)Bi-directional transmission or separation of two 8 bit data is possible; (2)low input load factor(pnp input); (3)input/output A and output/input B have hysteresis characteristics(hysteresis=400mV typical); (4)high fan-out(IOL=24mA,IOH=-15mA); (5)wide operating temperature range(Ta=-20℃ to +75℃).

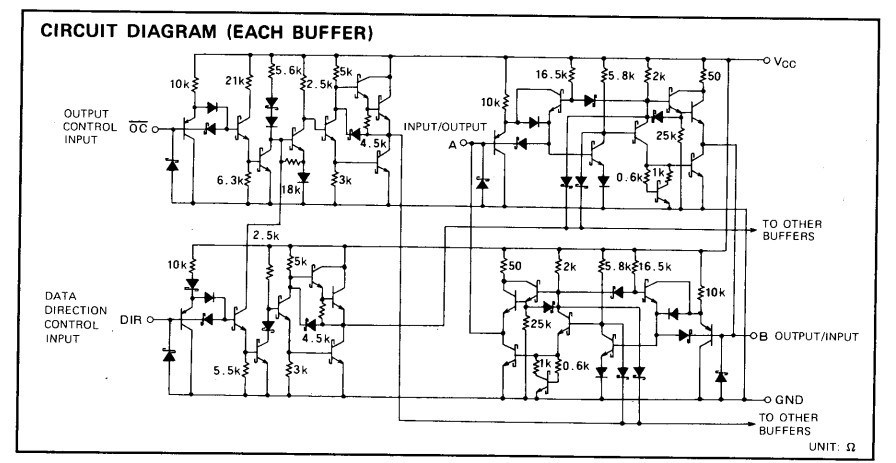

Diagrams
