Product Summary

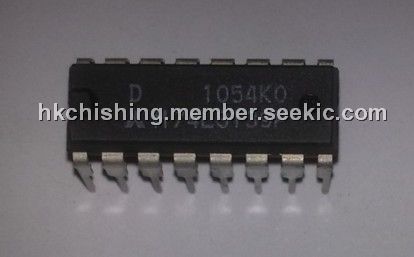

The M74LS139P is a semiconductor integrated circuit containing two 2-bit 2-line-to-4-line decoders/demultiplexers with separate enable inputs.

Parametrics

Absolute maximum ratings: (1)supply voltage:-0.5V to +7V; (2)input voltage:-0.5V to +15V; (3)output voltage:-0.5V to VCC; (4)operating free-air ambient temperature range:-20℃ to +75℃; (5)storage temperature range:-65℃ to +150℃.

Features

Features:(1)enable inputs provided; (2)two circuits completely separate; (3)wide operating temperature range(Ta=-20℃ to +75℃).

Diagrams
