Product Summary
The LT1963AEQ-3.3 is a low dropout regulator optimized for fast transient response. The LT1963AEQ-3.3 is capable of supplying 1.5A of output current with a dropout voltage of 340mV. Operating quiescent current is 1mA, dropping to < 1mA in shutdown. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the LT1963AEQ-3.3 regulator has very low output noise which makes them ideal for sensitive RF supply applications. The applications of the LT1963AEQ-3.3 include 3.3V to 2.5V Logic Power Supplies, Post Regulator for Switching Supplies.
Parametrics
LT1963AEQ-3.3 absolute maximum ratings: (1)IN Pin Voltage: ±20V; (2)OUT Pin Voltage: ±20V; (3)Input to Output Differential Voltage: ±20V; (4)SENSE Pin Voltage: ±20V; (5)ADJ Pin Voltage: ±7V; (6)SHDN Pin Voltage: ±20V; (7)Output Short-Circuit Duration: Indefinite; (8)Operating Junction Temperature Range: –45℃ to 125℃; (9)Storage Temperature Range: –65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1963AEQ-3.3 features: (1)Optimized for Fast Transient Response; (2)Output Current: 1.5A; (3)Dropout Voltage: 340mV; (4)Low Noise: 40μVRMS (10Hz to 100kHz); (5)1mA Quiescent Current; (6)No Protection Diodes Needed; (7)Controlled Quiescent Current in Dropout; (8)Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V; (9)Adjustable Output from 1.21V to 20V; (10)<1mA Quiescent Current in Shutdown; (11)Stable with 10μF Output Capacitor; (12)Stable with Ceramic Capacitors; (13)Reverse Battery Protection; (14)No Reverse Current; (15)Thermal Limiting.

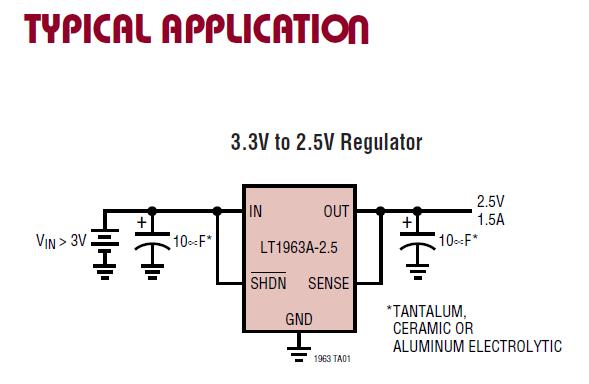

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1963AEQ-3.3 |
|
IC REG LDO 3.3V 1.5A 5DD |
Data Sheet |
|
|
||||||||||
|
LT1963AEQ-3.3#PBF |
|
IC REG LDO 3.3V 1.5A 5DD |
Data Sheet |
|
|
||||||||||
|
LT1963AEQ-3.3#TR |
|
IC REG LDO 3.3V 1.5A 5DD |
Data Sheet |
|
|
||||||||||
|
LT1963AEQ-3.3#TRPBF |
|
IC REG LDO 3.3V 1.5A 5DD |
Data Sheet |
|
|
||||||||||
