Product Summary

The IRFP460A is a HEXFET Power MOSFET. The applications of the IRFP460A include Switch Mode Power Supply ( SMPS ), Uninterruptable Power Supply, High speed power switching.

Parametrics

IRFP460A absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 20 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 13 A; (3)IDM Pulsed Drain Current: 80; (4)PD @TC = 25℃ Power Dissipation: 280 W; (5)Linear Derating Factor: 2.2 W/℃; (6)Gate-to-Source Voltage: ± 30 V; (7)Peak Diode Recovery dv/dt: 3.8 V/ns; (8)Operating Junction and Storage Temperature Range: -55 to + 150 ℃; (9)Soldering Temperature, for 10 seconds: 300 ℃ (1.6mm from case ); (10)Mounting torqe, 6-32 or M3 screw :10 lbf·in (1.1N·m).

Features

IRFP460A features: (1)Low Gate Charge Qg results in Simple Drive Requirement; (2)Improved Gate, Avalanche and dynamic dv/dt Ruggedness; (3)Fully Characterized Capacitance and Avalanche Voltage and Current; (4)Effective Coss specified ( See AN1001).

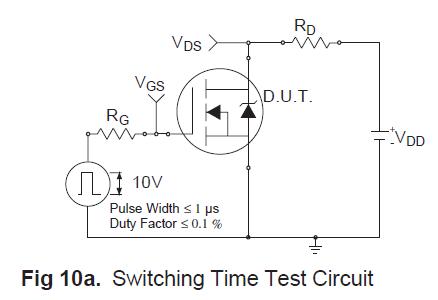

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFP460A
IRFP460A
Vishay/Siliconix
MOSFET N-Chan 500V 20 Amp
Data Sheet
0-331: $5.42
331-500: $4.97
500-1000: $4.78
IRFP460A, SiHFP460A
IRFP460A, SiHFP460A
Other

Data Sheet
Negotiable
IRFP460APBF
IRFP460APBF
Vishay/Siliconix
MOSFET N-Chan 500V 20 Amp
Data Sheet
0-1: $2.23
1-10: $1.79
10-100: $1.63
100-250: $1.47
IRFP460A_R4944
IRFP460A_R4944
Fairchild Semiconductor
MOSFET TO-247
Data Sheet
Negotiable
IRFP460AS
IRFP460AS
Other

Data Sheet
Negotiable
