Product Summary

The MA3S132K0L is a silicon epitaxial planar type.

Parametrics

MA3S132K0L absolute maximum ratings: (1)Reverse voltage (DC) VR: 80 V; (2)Peak reverse voltage VRM: 80 V; (3)Forward current (DC) IF 100 mA; (4)Peak forward current IFM: 225 mA; (5)Non-repetitive peak forward IFSM: 500 mA; (6)surge current Junction temperature Tj: 150 ℃; (7)Storage temperature Tstg: -55 to +150 ℃.

Features

MA3S132K0L features: (1)Short reverse recovery time trr; (2)Small terminal capacitance, Ct; (3)Super-small SS-mini type package, allowing high-density mounting.

Diagrams

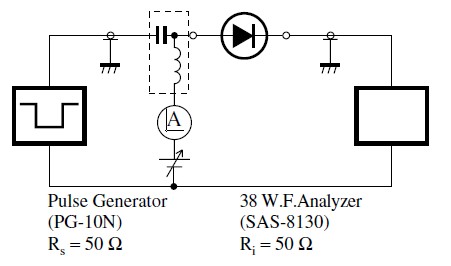

MA3S132K0L Bias Application Unit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MA3S132K0L
MA3S132K0L


DIODE SWITCH 80V 100MA SSMINI 3P

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MA3S132A
MA3S132A

Other


Data Sheet

Negotiable
MA3S132A0L
MA3S132A0L


DIODE SWITCH 80V 100MA SSMINI 3P

Data Sheet

0-3000: $0.04
3000-6000: $0.04
6000-12000: $0.03
12000-27000: $0.03
27000-51000: $0.03
MA3S132AGL
MA3S132AGL


DIODE SWITCH 80V 100MA SSMINI

Data Sheet

Negotiable
MA3S132D
MA3S132D

Other


Data Sheet

Negotiable
MA3S132D0L
MA3S132D0L


DIODE SWITCH 80V 100MA SSMINI 3P

Data Sheet

Negotiable
MA3S132DGL
MA3S132DGL


DIODE SWITCH 80V 100MA SSMINI

Data Sheet

Negotiable
