Product Summary

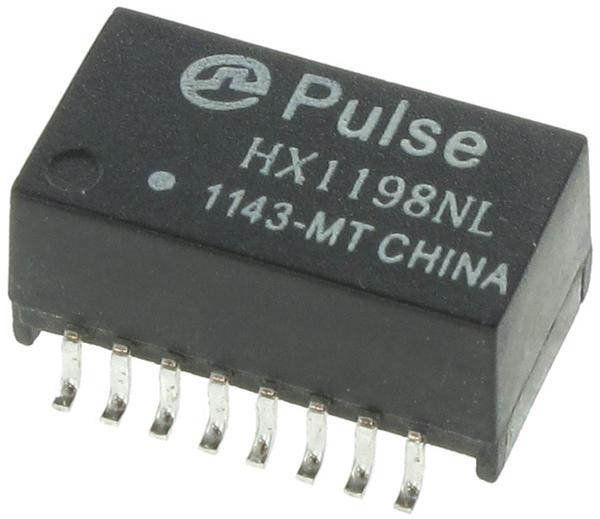

The HX1198NL is a 10/100BASE-T single port surface mount magnetic with Various Turns Ratios.

Parametrics

HX1198NL absolute maximum ratings: (1)Insertion Loss (dB MAX): -1.0 dB at 100kHz-100MHz; (2)Return Loss (dB MIN): -20 dB at 30MHz, -14 dB at 60MHz, -12 dB at 80MHz; (3)Differential to Common Mode Rejection (dB TYP): -12 dB at 30 MHz, -37 dB at 50 MHz, -32 dB at 100 MHz; (4)Crosstalk (dB MIN): -35 dB at 30MHz, -30 dB at 60MHz, -30 dB at 100MHz, -33 dB at 100 MHz; (5)Hipot (VRMS MIN): 1500 V.

Features

HX1198NL features: (1)RoHS peak reflow temperature rating: 245℃; (2)Meets IEEE 802.3 specification; (3)Compact footprint for use in the most space-restrictive applications.

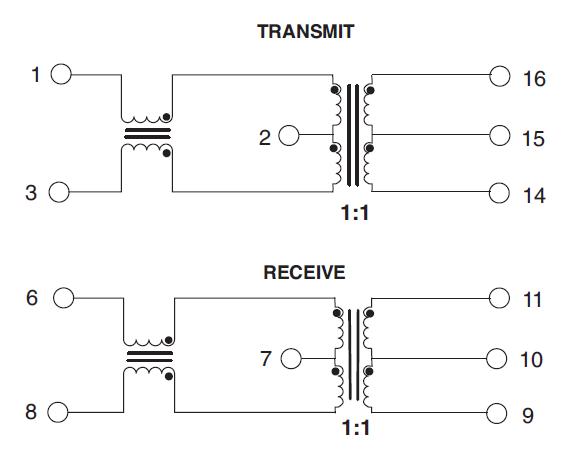

Diagrams
