HMC550E

SPST Failsafe switch, SOP, +34 dBm

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.60~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.60~2.00

PartNumber:: HMC550E

Brand:: Hittite Microwave Corporation - Hittite | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:HMC550E
US $1.60 - 2.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

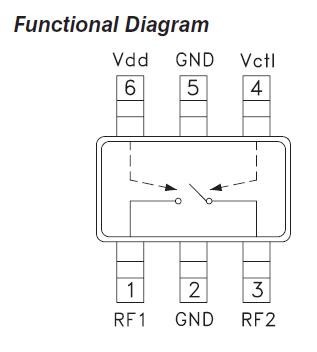

The HMC550E is a low-cost SPST Failsafe switch in 6-lead SOT26 plastic packages for use in switching applications which require low insertion loss and very low current consumption. With 0.7 dB typical loss, these devices can control signals from DC to 6.0 GHz and are especially suited for IF and RF applications including RFID, ISM, automotive and battery powered tags and portables. RF1 and RF2 are refl ective opens when "Off". The HMC550E requires a minimal amount of DC current in the "On" state, and offers compatibility with CMOS and some TTL logic families. The failsafe topology results in the switch being normally "On", i.e. low insertion loss from RF1 to RF2, when no DC bias is applied. The applications of the HMC550E include RFID & Electronic Toll Collection (ETC), Tags, Handsets & Portables, ISM, WLAN, WiMAX & WiBro, Automotive Telematics, Test Equipment.

Parametrics

HMC550E absolute maximum ratings: (1)RF Input Power (Vctl = 0/+3.3V): +34 dBm; (2)Supply Voltage (Vdd): +12 Vdc; (3)Control Voltage Range (Vctl): -0.2 to +VDD Vdc; (4)Hot Switch Power Level (Vctl = 0/+3.3V): +35 dBm; (5)Channel Temperature: 150 ℃; (6)Continuous Pdiss (T= 85 ℃) (derate 6.67 mW/ ℃ above 85℃): 433 mW; (7)Thermal Resistance: 150 ℃/W; (8)Storage Temperature: -65 to +150 ℃; (9)Operating Temperature: -40 to +85 ℃.

Features

HMC550E features: (1)Failsafe Operation - "On" When Unpowered; (2)Positive Control: 0/+2.2V to 0/+5V; (3)Very Low On State Current: 200 nA; (4)Low Insertion Loss: 0.7 dB; (5)High IP3: +52 dBm; (6)Compact SOT26 SMT Package.
