Product Summary

The D8251AFC is a programmable communications interface. The D8251AFC is designed for microcomputer systems data communications. The USART is used as a peripheral and is programmed by the D8251AFC or other processor to communicate in commonly used serial data transmission techniques including IBM Bi-sync. The USART receives serial data streams and convert s them into paralled data characters for the processor.

Parametrics

D8251AFC maximum ratings:(1)Power supply voltage, VDD: -0.5V to + 7V; (2)Input voltage, VI: -0.5V to + 7V; (3)Output voltage, VO: -0.5V to + 7v; (4)Operating temperature, TOPT: 0 to 70℃; (5)Storage temperature, Tstg: -65 to 150℃.

Features

D8251AFC features: (1)Asynchronous or synchronous operation; (2)Baud rate-DC to 64K baud; (3)Full-duplex, double buffered transmitter and receiver; (4)Parity overrun and framing flags; (5)Single +5V supply, ±10%; (6)Separate device and transmit TTL clocks; (7)NMOS technology.

Diagrams

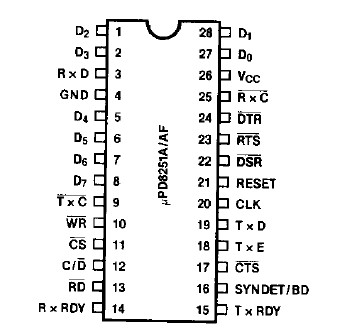

D8251AFC pin configuration
