Product Summary
The CD74HC4060E is a High-Speed CMOS Logic 14-Stage Binary Counter with Oscillator. It consists of an oscillator section and 14 ripple-carry binary counter stages. The oscillator configuration allows design of either RC or crystal oscillator circuits. A Master Reset input is provided which resets the counter to the all-0’s state and disables the oscillator. A high level on the MR line accomplishes the reset function. All counter stages of CD74HC4060E are master-slave flip-flops.
Parametrics
CD74HC4060E absolute maximum ratings: (1)DC Supply Voltage, VCC: 0.5V to 7V; (2)DC Input Diode Current, IIK: ±20mA For VI < -0.5V or VI > VCC + 0.5V; (3)DC Output Diode Current, IOK: ±20mA For VO < -0.5V or VO > VCC + 0.5V; (4)DC Drain Current, per Output, IO: ±25mA For -0.5V < VO < VCC + 0.5V; (5)DC VCC or Ground Current, ICC: ±50mA.
Features
CD74HC4060E features: (1)Onboard Oscillator; (2)Common Reset; (3)Negative-Edge Clocking; (4)Fanout (Over Temperature Range): Standard Outputs: 10 LSTTL Loadsm, Bus Driver Outputs: 15 LSTTL Loads; (5)Wide Operating Temperature Range: -55℃ to 125℃; (6)Balanced Propagation Delay and Transition Times; (7)Significant Power Reduction Compared to LSTTL Logic ICs.

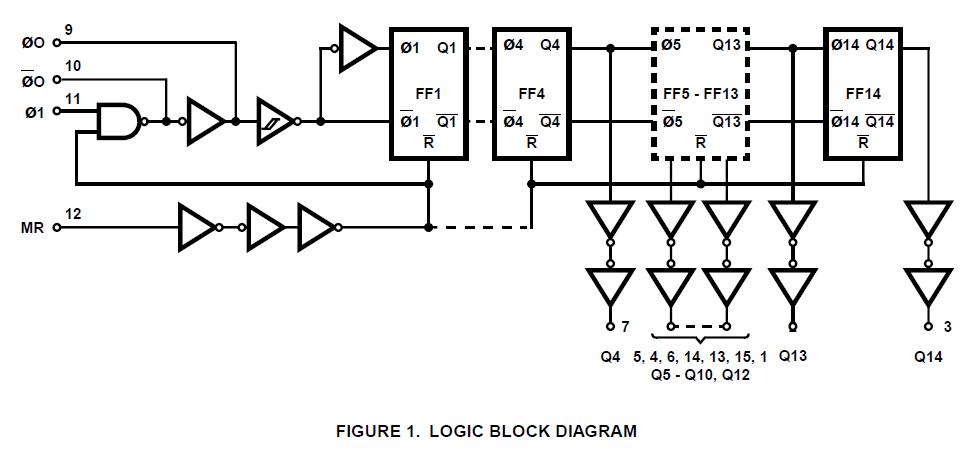

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD74HC4060E |
Texas Instruments |
Counter ICs 14 Stage Binary |
Data Sheet |
|
|
||||||||||||
|
CD74HC4060EE4 |
Texas Instruments |
Counter ICs Hi-Sp CMOS 14-Stage Binary w/Oscillator |
Data Sheet |
|
|
||||||||||||
