Product Summary
The RQ5RW31BA-TR is a voltage regulator IC with high accuracy output voltage and ultra-low supply current developed by CMOS process. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor for setting output voltage and a current limit circuit. The output voltage of the RQ5RW31BA-TR is fixed with high accuracy. Even if VOUT is shorted to GND, the included current limit circuit protects the IC from the destruction. Furthermore, the IC have a chip enable function, so that the supply current on standby can be minimized. Since the package for the RQ5RW31BA-TR is SC-82AB(Super Mini-mold)package, high density mounting of the ICs on boards is possible.
Parametrics
RQ5RW31BA-TR absolute maximum ratings: (1)VIN Input Voltage: 9 V; (2)VCE Input Voltage for CE/CE Pin: –0.3 to VIN +0.3 V; (3)VOUT Output Voltage: –0.3 to VIN +0.3 V; (4)IOUT Output Current: 150 mA; (5)PD Power Dissipation: 150 mW; (6)Topt Operating Temperature: –40 to +85 ℃; (7)Tstg Storage Temperature: –55 to +125 ℃.
Features
RQ5RW31BA-TR features: (1)Ultra-Low Supply Current TYP 1.5μA; (2)Standby Current TYP. 0.1μA; (3)Dropout Voltage TYP. 40mV (IOUT=1mA, RQ5RW30A/B); (4)Low Temperature-Drift Coefficient of; (5)Output Voltage TYP. ± 100ppm/℃; (6)Excellent Line Regulation TYP 0.05%/V; (7)High Accuracy Output Voltage ±2.0%; (8)Ultra-Small Package SC-82AB (Super Mini-mold); (9)Built-in Current Llimit Circuits.

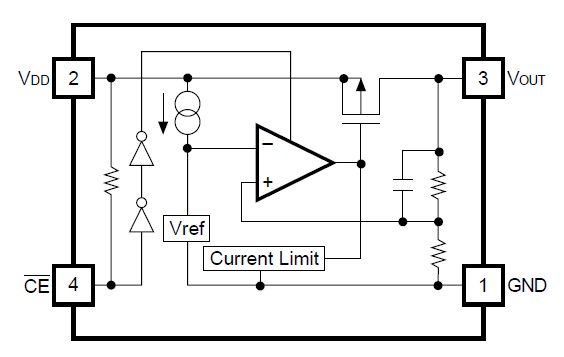

Diagrams
 |
