Product Summary
The 74ACT11008DR contains four independent 2-input AND gates. It performs the Boolean function Y = A· B or Y = A + B in positive logic. The 74ACT11008DR is characterized for operation from –40℃ to 85℃.
Parametrics
74ACT11008DR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 6 V; (2)Input voltage range, VI: –0.5 V to VCC + 0.5 V; (3)Output voltage range, VO: –0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±50 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±50 mA; (7)Continuous current through VCC or GND: ±100 mA.
Features
74ACT11008DR features: (1)Inputs Are TTL-Voltage Compatible; (2)Center-Pin VCC and GND Configurations Minimize High-Speed Switching Noise; (3)EPICE (Enhanced-Performance Implanted CMOS) 1-μm Process; (4)500-mA Typical Latch-Up Immunity at 125℃; (5)Package Options Include Plastic Small-Outline (D), Plastic Thin Shrink Small-Outline (PW), and Standard Plastic 300-mil DIPs (N) Packages.

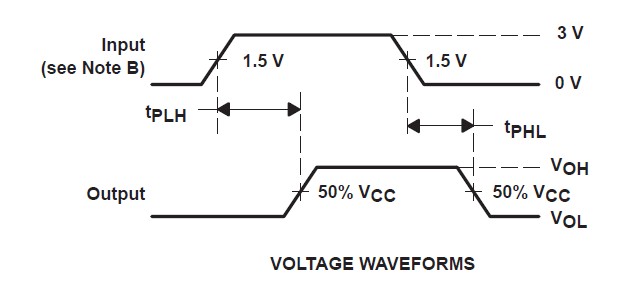

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 74ACT11008DR |
![]() |
![]() IC QUAD 2IN AND GATE 16-SOIC |
![]() Data Sheet |
![]()
|
|
||||||
![]() |
![]() 74ACT11008DRE4 |
![]() |
![]() IC QUAD 2IN AND GATE 16-SOIC |
![]() Data Sheet |
![]()
|
|
||||||
![]() |
![]() 74ACT11008DRG4 |
![]() |
![]() IC QUAD 2IN AND GATE 16-SOIC |
![]() Data Sheet |
![]()
|
|
