5962-7802006QEA

line receiver, dip, 7 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.10~7.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.10~7.00

PartNumber:: 5962-7802006QEA

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-23

From Other Seller

Part Number:5962-7802006QEA
US $6.10 - 7.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

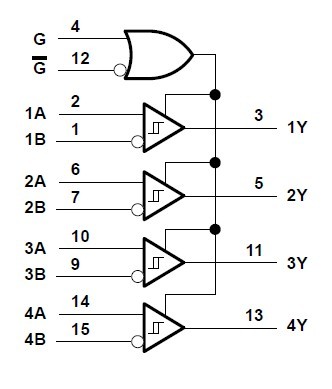

The 5962-7802006QEA is a quadruple differential line receiver for balanced and unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs permit connection directly to a bus-organized system. Fail-safe design ensures that, if the inputs are open, the outputs always are high.

Parametrics

5962-7802006QEA absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: Any differential input: ±25 V; Other inputs: 7 V; (3)Differential input voltage, VID: ±25 V; (4)Case temperature for 60 seconds, TC: FK package: 260℃; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or N package: 260℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J package: 300℃; (7)Storage temperature range, Tstg: -65℃ to 150℃.

Features

5962-7802006QEA features: (1)Input Hysteresis: 50 mV Typical; (2)Operate From a Single 5-V Supply; (3)Low-Power Schottky Circuitry; (4)3-State Outputs; (5)Complementary Output-Enable Inputs; (6)Input Impedance: 12 kΩ Min; (7)Designed to Be Interchangeable With.
