Product Summary

The RK73B2ATTD153J is a general purpose 2%, 5%tolerance thick filmchip resistor.

Parametrics

RK73B2ATTD153J absolute maximum ratings: (1)Resistance: 15 KOhms; (2)Tolerance: 5 %; (3)Power Rating: 0.125 Watt (1/8 Watt); (4)Temperature Coefficient: +/- 200 PPM / ℃; (5)Series: RK73B; (6)Termination Style: SMD/SMT; (7)Package / Case: 0805 (2013 metric); (8)Voltage Rating: 150 Volts; (9)Operating Temperature Range: - 55 to + 155℃; (10)Packaging: Reel; (11)Dimensions: 1.25 mm W x 2 mm L x 0.5 mm H; (12)Product: Thick Film Resistors SMD.

Features

RK73B2ATTD153J features: (1)RuO2 thick film resistor element; (2)Anti-leaching nickel barrier terminations; (3)Meets or exceeds EIA 575, EIAJ RC 2690A, EIA PDP-100, MIL-R-55342F; (4)Marking: White three-digit on black protective coat No marking on 1F, 1H and 1E sizes; (5)Products with lead-free terminations meet EU RoHS requirements. Pb located in glass material, electrode and resistor element is exempt per Annex 1, exemption 5 of EU directive 2005/95/EC.

Diagrams

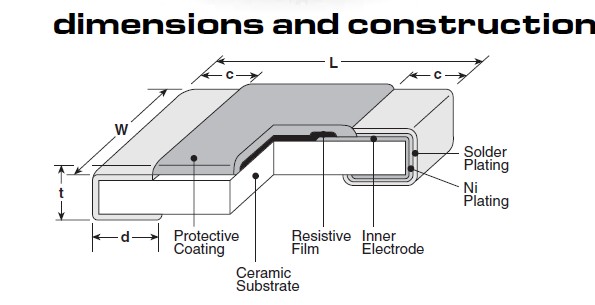

RK73B2ATTD153J dimensions and construction

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RK73B2ATTD153J
RK73B2ATTD153J

KOA Speer

Thick Film Resistors - SMD 1/8watts 15Kohms 5%

Data Sheet

0-1: $0.05
1-100: $0.01
100-1000: $0.01
1000-5000: $0.00
