Product Summary
The 2N5486 is a N-Channel RF Amplifier. The 2N5486 is designed primarily for electronic switching applications such as low On Resistance analog switching.
Parametrics
2N5486 absolute maximum ratings: (1)Drain-Gate Voltage: 25 V; (2)Gate-Source Voltage: -25 V; (3)Forward Gate Current: 10 mA; (4)Operating and Storage Junction Temperature Range: -55 to +150 ℃.
Features
2N5486 electrical characteristics: (1)Gate-Source Breakdown Voltage: -25 V at IG = - 1.0 μA, VDS = 0; (2)Gate Reverse Current: -1.0 nA at VGS = - 20 V, VDS = 0, -0.2 μA at VGS= - 20 V, VDS= 0, TA= 100℃; (3)Gate-Source Cutoff Voltage: -2.0 to -6.0 V at VDS = 15 V, ID = 10 nA; (4)Zero-Gate Voltage Drain Current: 8.0 to 20 mA at VDS = 15 V, VGS = 0; (5)Forward Transfer Conductance: 4000 to 8000 μmhos at VDS = 15 V, VGS = 0, f = 1.0 kHz.

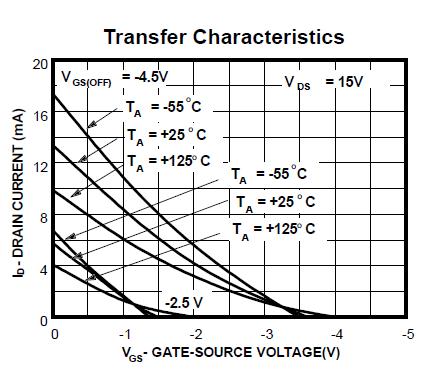

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N5486 |
Central Semiconductor |
JFET N-Chan JFET |
Data Sheet |
|
|
||||||||||||
 |
2N5486_D26Z |
Fairchild Semiconductor |
Transistors RF JFET NCh RF Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N5486_D74Z |
Fairchild Semiconductor |
Transistors RF JFET NCh RF Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N5486_D74Z_Q |
Fairchild Semiconductor |
Transistors RF JFET NCh RF Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
 |
2N5486-E3 |
Vishay/Siliconix |
JFET 40V 5mA |
Data Sheet |
Negotiable |
|
||||||||||||
 |
2N5486G |
ON Semiconductor |
JFET 25V 10mA |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N5486RLRP |
ON Semiconductor |
JFET 25V 10mA |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N5486RLRPG |
ON Semiconductor |
JFET 25V 10mA |
Data Sheet |
Negotiable |
|
||||||||||||
