Product Summary

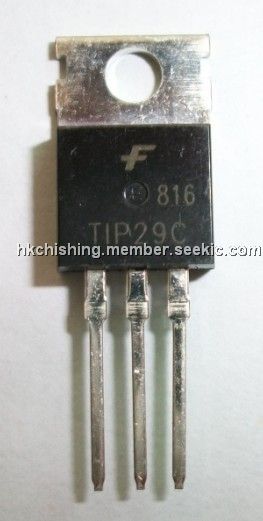

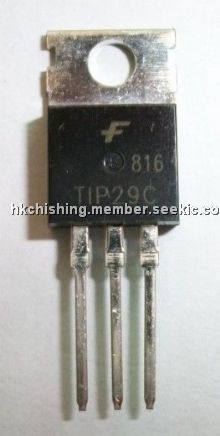

The TIP29C is a type of complementary silicon power transistor.

Parametrics

TIP29C maximum ratings: (1)Emitter-Base Voltage: 5.0 V; (2)Collector Current- Continuous:1.0A; Peak, 3.0 A; (3)Base Current-Continuous: 0.4 A; (4)Total power dissipation TC=25℃: 30W/℃, Derate above 25℃:; (5)0.24W/℃; (6)Junction Temperature: -55 to +150 ℃; (7)Storage Temperature: -55 to +150 ℃.

Features

TIP29C features: (1)Lead Free Finish/RoHS Compliant; (2)Marking: Type Number; (3)Case Material: Molded Plastic. UL Flammability; (4)Classification Rating 94V-0.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TIP29CG
TIP29CG
ON Semiconductor
Transistors Bipolar (BJT) 1A 100V 30W NPN
Data Sheet
0-1: $0.32
1-25: $0.29
25-100: $0.22
100-500: $0.18
TIP29CTSTU
TIP29CTSTU
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Epitaxial Sil Short Leads
Data Sheet
0-1: $0.62
1-25: $0.47
25-100: $0.35
100-250: $0.26
TIP29CTU
TIP29CTU
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Epitaxial Sil
Data Sheet
0-1: $0.29
1-25: $0.24
25-100: $0.21
100-250: $0.19
TIP29C-S
TIP29C-S
Bourns
Transistors Bipolar (BJT) 100V 1A NPN
Data Sheet
0-15000: $0.29
15000-20200: $0.29
TIP29C-BP
TIP29C-BP
Micro Commercial Components (MCC)
Transistors Bipolar (BJT) NPN 100V 1A 30W
Data Sheet
0-1: $0.41
1-10: $0.32
10-25: $0.27
25-100: $0.25
TIP29C
TIP29C
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Epitaxial Sil
Data Sheet
0-1: $0.28
1-25: $0.23
25-100: $0.20
100-250: $0.18
