Product Summary
The TC74VHC11FT is an advanced high speed CMOS 3-INPUT AND GATE fabricated with silicon gate C2MOS technology. The device achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The internal circuit of the TC74VHC11FT is composed of 4 stages including buffer output, which provide high noise immunity and stable output. An input protection circuit ensures that 0 to 5.5 V can be applied to the input pins without regard to the supply voltage. This device TC74VHC11FT can be used to interface 5 V to 3 V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.
Parametrics
TC74VHC11FT absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 to 7.0 V; (2)DC input voltage, VIN: -0.5 to 7.0 V; (3)DC output voltage, VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current, IIK: -20 mA; (5)Output diode current, IOK: ±20 mA; (6)DC output current, IOUT: ±25 mA; (7)DC VCC/ground current, ICC: ±50 mA; (8)Power dissipation, PD: 180 mW; (9)Storage temperature, Tstg: -65 to 150℃.
Features
TC74VHC11FT features: (1)High speed: tpd = 4.1 ns (typ.) at VCC = 5 V; (2)Low power dissipation: ICC = 2μA (max) at Ta = 25℃; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Power down protection is provided on all inputs; (5)Balanced propagation delays: tpLH=tpHL; (6)Wide operating voltage range: VCC (opr) = 2 to 5.5 V; (7)Pin and function compatible with 74ALS11.

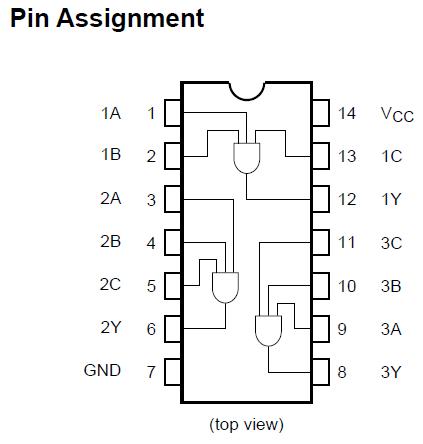

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC74VHC11FT(EL,M) |
|
IC GATE AND TRPL 3INP 14-TSSOP |
Data Sheet |
|
|
||||||
|
TC74VHC11FT(EL) |
|
IC GATE AND TRPL 3INP 14-TSSOP |
Data Sheet |
Negotiable |
|
||||||
