Product Summary

The R3112Q401A-TR is a CMOS-based voltage detector IC with high detector threshold accuracy and ultra-low supply current, which can be operated at an extremely low voltage and is used for system reset as an example. Each of these ICs consists of a voltage reference unit, a comparator, resistor net for detector threshold setting, an output driver, a hysteresis circuit, and an output delay circuit. The detector threshold of R3112Q401A-TR is fixed with high accuracy internally and does not require any adjustment. Two output types, Nch open drain type and CMOS type are available. Three types of packages, SOT-23-5, small SC-82AB, and ultra-small SON1612-6 can be selected so that high density mounting on boards is possible. The applications of the R3112Q401A-TR include CPU and Logic Circuit Reset, Battery Checker, Window Comparator, Wave Shaping Circuit, Battery Back-up Circuit, Power Failure Detector.

Parametrics

R3112Q401A-TR absolute maximum ratings: (1)Supply Voltage: 6.5 V; (2)VOUT1 Output Voltage (CMOS): VSS-0.3 to VDD+0.3 V; (3)VOUT2 Output Voltage (Nch): VSS-0.3 to 6.5 V; (4)IOUT Output Current: 20 mA; (5)Power Dissipation (SOT-23-5)*: 420 mW; (6)PD Power Dissipation (SC-82AB)*: 380 mW; (7)Power Dissipation (SON1612-6)*: 500 mW; (8)Operating Temperature Range: -40 to 85 ℃; (9)Storage Temperature Range: -55 to 125 ℃; (10)Tsolder Lead temperature (Soldering): 260 ℃, 10s.

Features

R3112Q401A-TR features: (1)Built-in Output Delay Circuit: Typ. 100ms with an external capacitor: 0.022μF; (2)Supply Current: Typ. 0.5μA (R3112x271A/C, VDD=2.6V); (3)Operating Voltage: 0.7 to 6.0V(Topt=25℃); (4)Detector Threshold: 0.9V to 5.0V; (5)High Accuracy Detector Threshold: ±2.0%; (6)Low Temperature-Drift Coefficient of Detector Threshold: Typ. ±100ppm/℃; (7)Two Output Types: Nch Open Drain and CMOS; (8)Packages: SOT-23-5(Mini-mold),SC-82AB, SON1612-6.

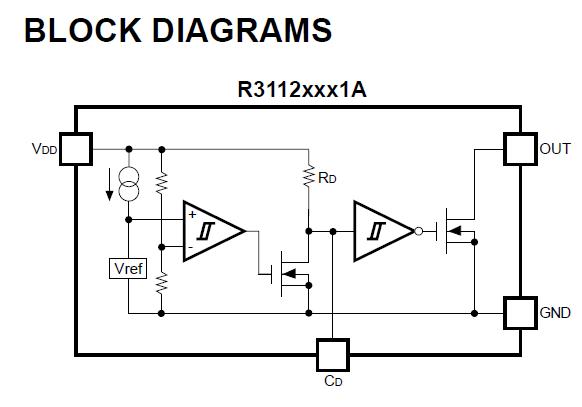

Diagrams

R3111
R3111
