Product Summary
The SSM2164S is a Low Cost Quad Voltage Controlled Amplifier. It contains four independent voltage controlled amplifiers (VCAs) in a single package. The SSM2164S will operate over a wide supply voltage range of ±4 V to ±18 V. Available in 16-pin P-DIP and SOIC packages, the device is guaranteed for operation over the extended industrial temperature range of –40℃ to +85℃. The applications of the SSM2164S are Remote, Automatic, or Computer Volume Controls, Automotive Volume/Balance/Faders, Audio Mixers, Compressor/Limiters/Compandors, Noise Reduction Systems, Automatic Gain Controls, Voltage Controlled Filters, Spatial Sound Processors, Effects Processors.
Parametrics
SSM2164S absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Input, Output, Control Voltages:V– to V+; (3)Output Short Circuit Duration to GND:Indefinite; (4)Storage Temperature Range:-65℃ to +150℃; (5)Operating Temperature Range:–40℃ to +85℃; (6)Junction Temperature Range:–65℃ to +150℃; (7)Lead Temperature Range (Soldering 60 sec):+300℃.
Features
SSM2164S features: (1)Four High Performance VCAs in a Single Package 0.02% THD; (2)No External Trimming; (3)120 dB Gain Range; (4)0.07 dB Gain Matching (Unity Gain); (5)Class A or AB Operation.

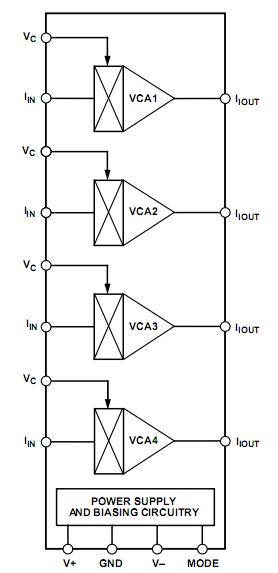

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SSM2164S-REEL |
Analog Devices Inc |
IC AMP AUDIO QUAD CLASSAB 16SOIC |
Data Sheet |
Negotiable |
|
|||||||||||||||||
SSM2164SZ |
Analog Devices Inc |
IC AMP AUDIO QUAD CLASSAB 16SOIC |
Data Sheet |
|
|
|||||||||||||||||
SSM2164SZ-REEL |
Analog Devices Inc |
IC AMP AUDIO QUAD CLASSAB 16SOIC |
Data Sheet |
|
|
|||||||||||||||||
SSM2164SZ-REEL7 |
Analog Devices Inc |
IC AMP AUDIO QUAD CLASSAB 16SOIC |
Data Sheet |
|
|
|||||||||||||||||
SSM2164S |
Analog Devices Inc |
IC AMP AUDIO QUAD CLASSAB 16SOIC |
Data Sheet |
Negotiable |
|
