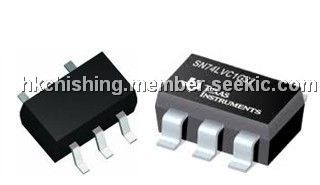

SN74LVC1G32DCKRG4

positive-OR gate, SOP, –0.5 to 6.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.50

PartNumber:: SN74LVC1G32DCKRG4

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:SN74LVC1G32DCKRG4
US $0.30 - 0.50
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

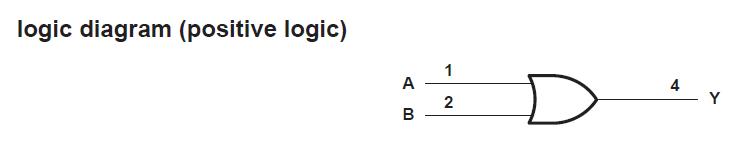

The SN74LVC1G32DCKRG4 single 2-input positive-OR gate is designed for 1.65-V to 5.5-V VCC operation. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC1G32DCKRG4 is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Parametrics

SN74LVC1G32DCKRG4 absolute maximum ratings: (1)Supply voltage range: –0.5 to 6.5 V; (2)Input voltage range: –0.5 to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state: –0.5 to 6.5 V; (4)Voltage range applied to any output in the high or low state: –0.5 to VCC + 0.5 V; (5)Input clamp current: –50 mA at VI < 0; (6)Output clamp current: –50 mA at VO < 0; (7)Continuous output current: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Storage temperature range: –65 to 150 ℃.

Features

SN74LVC1G32DCKRG4 features: (1)Available in the Texas Instruments NanoStar. and NanoFree. Packages; (2)Ioff Supports Partial-Power-Down Mode Operation; (3)Supports 5-V VCC Operation; (4)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (5)Inputs Accept Voltages to 5.5 V; (6)Max tpd of 3.3 ns at 3.3 V; (7)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101); (8)Low Power Consumption, 10-mA Max I CC; (9)±24-mA Output Drive at 3.3 V.
