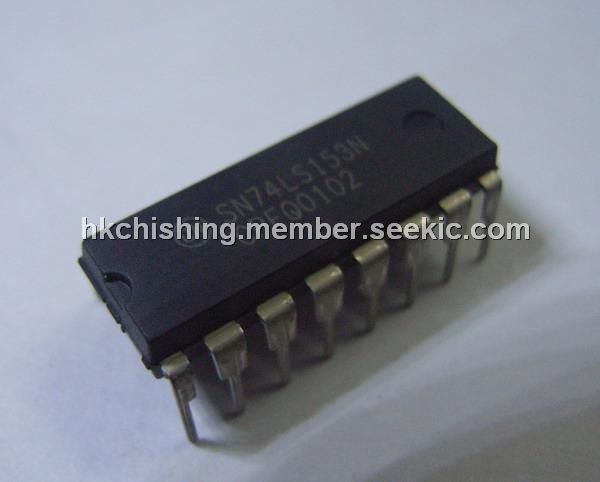

Product Summary
The SN74LS153N is a dual 4-line to 1-line data selector. The device contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR gates. Separate strobe inputs are provide for each of the two four-line sections.
Parametrics
SN74LS153N absolute maximumratings: (1)supply voltage, VCC: 7V; (2)input voltage: 7V; (3)operating free-air temperature range: -55 to 125℃; (4)storage temperature range: -65 to 150℃.
Features
SN74LS153N features: (1)permits multiplexing from N lines to 1 line; (2)performs parallel to serial conversion; (3)strobe line provided for cascading; (4)high fan out, low impedance, totem pole outputs; (5)fully compatible with most TTL circuits.

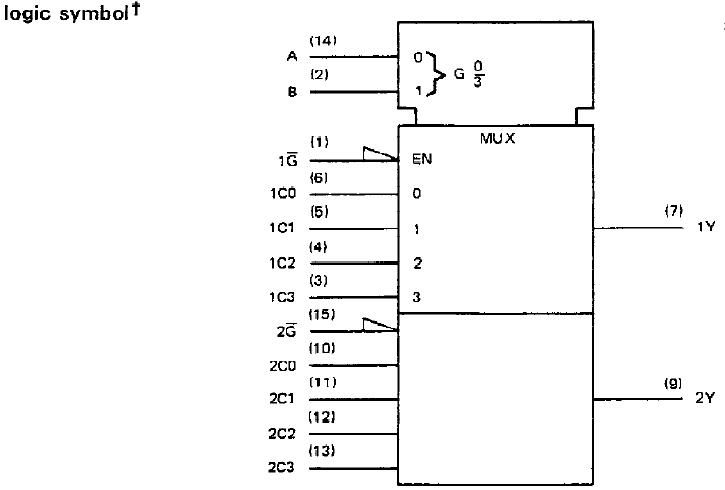

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SN74LS153N |
![]() Texas Instruments |
![]() Encoders, Decoders, Multiplexers & Demultiplexers Dual 4 to 1-Line Selector/Multiplexer |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SN74LS153NE4 |
![]() Texas Instruments |
![]() Encoders, Decoders, Multiplexers & Demultiplexers Dual 4 to 1-Line Selector/Multiplexer |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SN74LS153NSR |
![]() Texas Instruments |
![]() Encoders, Decoders, Multiplexers & Demultiplexers Dual 4 to 1-Line Selector/Multiplexer |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SN74LS153NSRG4 |
![]() Texas Instruments |
![]() Encoders, Decoders, Multiplexers & Demultiplexers Dual 4Ln To 1Ln Data Selector Multiplexer |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SN74LS153NSRE4 |
![]() Texas Instruments |
![]() Encoders, Decoders, Multiplexers & Demultiplexers Dual 4 to 1-Line Selector/Multiplexer |
![]() Data Sheet |
![]()
|
|
