Product Summary
The HN2S01FU is a low voltage high speed switching application. It is composed of 3 independent diodes.
Parametrics
HN2S01FU absolute maximum ratings: (1)Maximum (peak) reverse Voltage VRM: 15 V; (2)Reverse voltage VR: 10 V; (3)Maximum (peak) forward current IFM: 200 mA; (4)Average forward current IO: 100 mA; (5)Surge current (10ms) IFSM: 1 A; (6)Power dissipation P: 200 mW; (7)Junction temperature Tj: 125 ℃; (8)Storage temperature range Tstg: -55～125 ℃; (9)Operating temperature range Topr: -40～100 ℃.
Features
HN2S01FU features: (1)HN2S01FU is composed of 3 independent diodes; (2)Low reverse current: VF = 0.23V (typ.) @IF = 5mA.

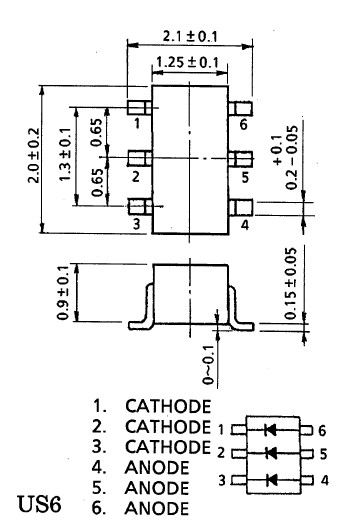

Diagrams
