Product Summary
The MMBT3904LT1G is a general purpose transistor with NPN silicon.
Parametrics
MMBT3904LT1G maximum ratings: (1)Collector.Emitter Voltage: 40 Vdc; (2)Collector.Base Voltage: 60 Vdc; (3)Emitter.Base Voltage: 6.0 Vdc; (4)Collector Current-Continuous: 200 mAdc; (5)Thermal Resistance Junction to Ambient: 556℃/W; (6)Junction and Storage Temperature: -55 to +150℃.
Features
MMBT3904LT1G features: Pb-Free Packages are Available.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

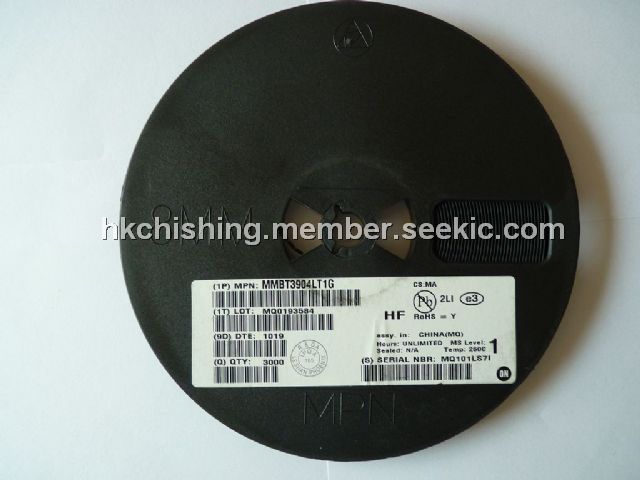

MMBT3904LT1G |
ON Semiconductor |
Transistors Bipolar (BJT) NPN GENERAL PURPOSE |
Data Sheet |
|
|
|||||||||||||
MMBT3904LT1G ON 08+ |
Other |
Data Sheet |
Negotiable |
|
