Product Summary
The VW2010 is a real-time MPEG-1, -2 and -4 audio/video/system CODEC chip (simultaneous compression/ decompression, or encode/decode) that fully complies with ISO/IEC-11172-2, ISO/IEC-13818-2, ISO/IEC-14496-2 and ITU-T H.263. The VW2010 accepts uncompressed ITU-R.BT-656 video and I2S audio, compresses the video into MPEG-1, -2, -4 or H.263 formats, compresses the audio into MPEG-1, MPEG-2, MP3, AAC or AC-3 audio formats, and outputs them as transport streams for network applications or program streams for storage applications. In addition, the VW2010 accepts an MPEG bitstream input, and outputs ITU-R.BT-656 video. It also accepts an MPEG-1, MPEG-2, MP3, AAC or AC-3 audio bitstream input, and outputs audio through I2S, S/P-DIF or IEC-61937.
Features
Features: (1)Support for MPEG-1; (2)Support for MPEG-2 MP AT ML; (3)Support for MPEG-4 Simple Profile; (4)Adaptive field/frame motion compensation and DCT type; (5)4:2:2 to 4:2:0 conversion; (6)Scene change detection; (7)Inverse telecine (3:2 pulldown); (8)Motion estimation search range +/- 127 pels horizontal and +/- 63 pels vertical, with half-pel accuracy; (9)8-tap horiz. filter and 4-tap vert. filter; (10)Extraction of VBI data (including Close Captioned and NABTS data) from the ITU-R.BT-656 input; (11)Support for private and user data insertions from VBI or host/PCI port.

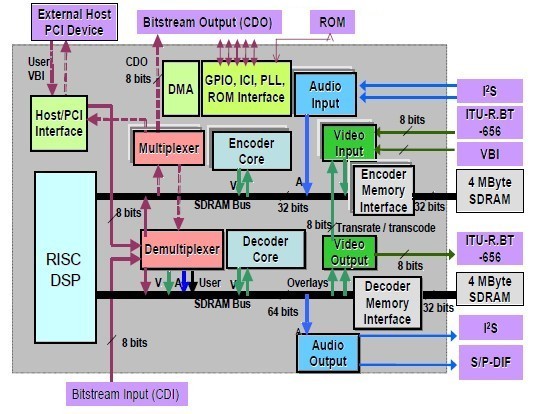

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
VW2010 |
Other |
Data Sheet |
Negotiable |
|
||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
VW2005 |
Other |
Data Sheet |
Negotiable |
|
||||||
VW2010 |
Other |
Data Sheet |
Negotiable |
|
