Product Summary
The LM78M05CT is a three-terminal positive voltage regulator. It employs built-in current limiting,thermal shutdown,and safe-operating area protection which makes it virtually immune to damage from output overloads. Typical applications of the LM78M05CT would include local(on-card) regulators which can eliminate the noise and degraded performance associated with single-point regulation.
Parametrics
LM78M05CT absolute maximum ratings: (1)Lead Temperature(Soldering, 10seconds) TO-39 Package(H): 300℃; TO-220 Package(T): 260℃; (2)Storage Temperature Range: -65℃ to +150℃; (3)Operating Junction Temperature Range: -40℃ to +125℃; (4)Power Dissipation: Internally Limited; (5)Input Voltage: 5V≤V0≤15V: 35V; (6)ESD Susceptibility: TBD.
Features
LM78M05CT features: (1)Output current in excess of 0.5A; (2)No external components; (3)Internal thermal overload protection; (4)Internal short circuit current-limiting; (5)Output transistor safe-area compensation; (6)Available in TO-220, TO-39, and TO-252 D-PAK packages; (7)Output voltages of 5V, 12V, and 15V.

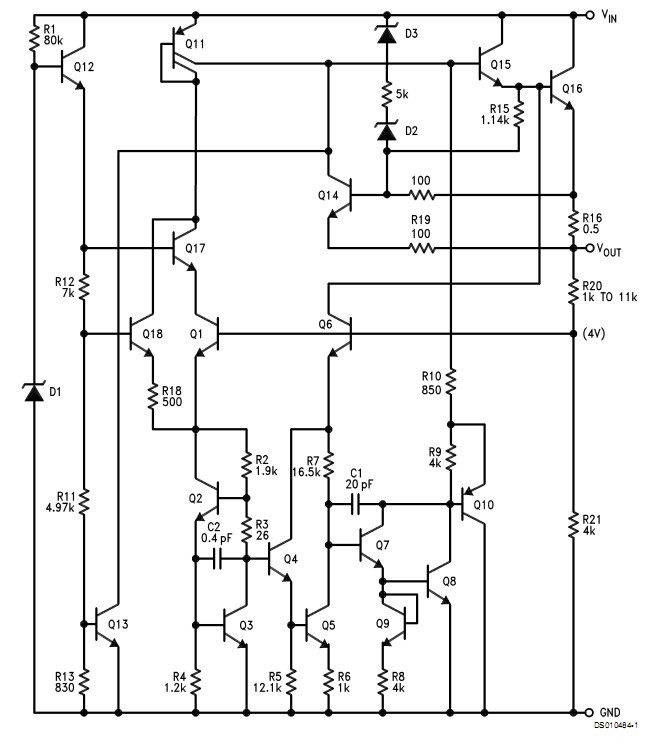

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM78M05CT |
Fairchild Semiconductor |
Linear Regulators - Standard TO-220 .5A Pos Volt |
Data Sheet |
|
|
||||||||||||
|
LM78M05CT/NOPB |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
|
|
||||||||||||
|
LM78M05CT_Q |
Fairchild Semiconductor |
Linear Regulators - Standard TO-220 .5A Pos Volt |
Data Sheet |
