LM299H

A/D converter, 6.5V, ±30 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.30~6.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.30~6.50

PartNumber:: LM299H

Brand:: National Semiconductor - NS | Pack: CAN | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Maggie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:LM299H
US $6.30 - 6.50
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
PIC16F917-I/P(PIC16F917-IP)

US $1.60 - 2.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

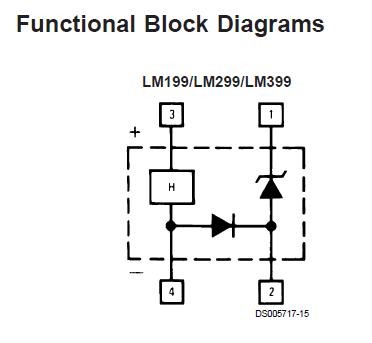

The LM299H is a precision, temperature-stabilized monolithic zener offering temperature coefficients a factor of ten better than high quality reference zeners. Constructed on a single monolithic chip is a temperature stabilizer circuit and an active reference zener. The active circuitry of LM299H reduces the dynamic impedance of the zener to about 0.5W and allows the zener to operate over 0.5 mA to 10 mA current range with essentially no change in voltage or temperature coefficient. Further, a new subsurface zener structure gives low noise and excellent long term stability compared to ordinary monolithic zeners. The package of LM299H is supplied with a thermal shield to minimize heater power and improve temperature regulation.

Parametrics

LM299H absolute maximum ratings: (1)Temperature Stabilizer Voltage: 40V; (2)Reverse Breakdown Current: 20 mA; (3)Forward Current: 1 mA; (4)Reference to Substrate Voltage V(RS): 40V; (5)Operating Temperature Range: -55℃ to +125℃; (6)Storage Temperature Range: -55℃ to +150℃; (7)Soldering Information: TO-92 package (10 sec.) +260℃, TO-46 package (10 sec.) +300℃.

Features

LM299H features: (1)Guaranteed 0.0001%/℃ temperature coefficient; (2)Low dynamic impedance: 0.5W; (3)Initial tolerance on breakdown voltage: 2%; (4)Sharp breakdown at 400 μA; (5)Wide operating current: 500 μA to 10 mA; (6)Wide supply range for temperature stabilizer; (7)Guaranteed low noise; (8)Low power for stabilization: 300 mW at 25℃; (9)Long term stability: 20 ppm; (10)Proven reliability, low-stress packaging in TO-46 integrated-circuit hermetic package, for low hysteresis after thermal cycling. 33 million hours MTBF at TA = +25℃ (TJ = +86℃); (11)Certified long term stability available; (12)MIL-STD-883 compliant.
