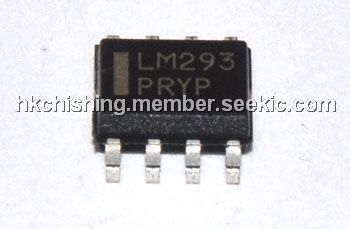

Product Summary

The LM293DR is a dual differential comparator. The LM293DR consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs of the LM293DR can be connected to other open-collector outputs to achieve wired-AND relationships. The LM293DR is characterized for operation from -55 to 125℃.

Parametrics

LM293DR absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage range, VI (either input): -0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground: Unlimited; (7)Package thermal impedance, θJA: 97℃/W; (8)Package thermal impedance, θJC: 5.61℃/W; (9)Operating virtual junction temperature, TJ: 150℃; (10)Case temperature for 60 seconds: 260℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: 300℃; (12)Storage temperature range, Tstg: -65 to 150℃.

Features

LM293DR features: (1)Single Supply or Dual Supplies; (2)Wide Range of Supply Voltage; (3)Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA Typ Per Comparator; (4)Low Input Bias Current: 25 nA Typ; (5)Low Input Offset Voltage: 2 mV Typ; (6)Common-Mode Input Voltage Range Includes Ground; (7)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V; (8)Low Output Saturation Voltage; (9)Output Compatible With TTL, MOS, and CMOS.

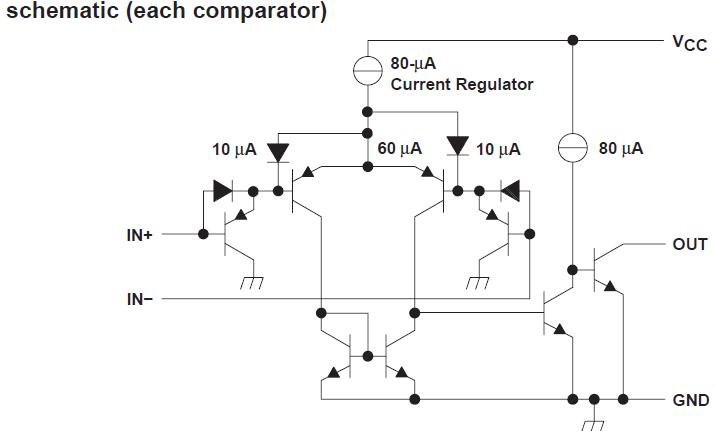

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM293DR
LM293DR

Texas Instruments

Comparator ICs Dual Differential

Data Sheet

0-1: $0.23
1-25: $0.15
25-100: $0.13
100-250: $0.11
LM293DR2
LM293DR2

ON Semiconductor

Comparator ICs 2-36V Dual

Data Sheet

Negotiable
LM293DR2G
LM293DR2G

ON Semiconductor

Comparator ICs 2-36V Dual -25 to 85 deg C

Data Sheet

0-1: $0.29
1-25: $0.20
25-100: $0.16
100-500: $0.11
LM293DRG3
LM293DRG3

Texas Instruments

Comparator ICs Dual Diff Comparator

Data Sheet

0-1: $0.23
1-25: $0.15
25-100: $0.13
100-250: $0.11
LM293DRG4
LM293DRG4

Texas Instruments

Comparator ICs Dual Differential Comparator

Data Sheet

0-1: $0.18
1-25: $0.13
25-100: $0.11
100-250: $0.09
LM293DRE4
LM293DRE4

Texas Instruments

Comparator ICs Dual Differential Comparator

Data Sheet

0-1: $0.18
1-25: $0.13
25-100: $0.11
100-250: $0.09
