Product Summary

The Motorola AM26LS31PC is a quad differential line driver intended for digital data transmission over balanced lines. It meets all the requirements of EIA–422 Standard and Federal Standard 1020. The AM26LS31PC provides an enable/disable function common to all four drivers as opposed to the split enables on the MC3487 EIA–422 driver. The high impedance output state of the AM26LS31PC is assured during power down.

Parametrics

AM26LS31PC maximum ratings: (1)Power Supply Voltage VCC: 8.0 Vdc; (2)Input Voltage VI: 5.5 Vdc; (3)Operating Ambient Temperature Range TA: 0 to + 70 ℃; (4)Operating Junction Temperature Range TJ: 150 ℃; (5)Storage Temperature Range Tstg: – 65 to + 150 ℃.

Features

AM26LS31PC features: (1)Full EIA22 Standard Compliance; (2)Single +5.0 V Supply; (3)Meets Full VO = 6.0 V, VCC = 0 V, IO<100 μA Requirement; (4)Output Short Circuit Protection; (5)Complementary Outputs for Balanced Line Operation; (6)High Output Drive Capability; (7)Advanced LS Processing; (8)PNP Inputs for MOS Compatibility.

Diagrams

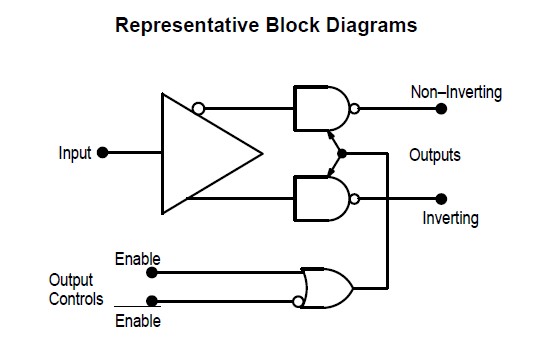

AM26LS31PC Representative Block Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AM26LS31PC
AM26LS31PC
Other

Data Sheet
Negotiable
